Description

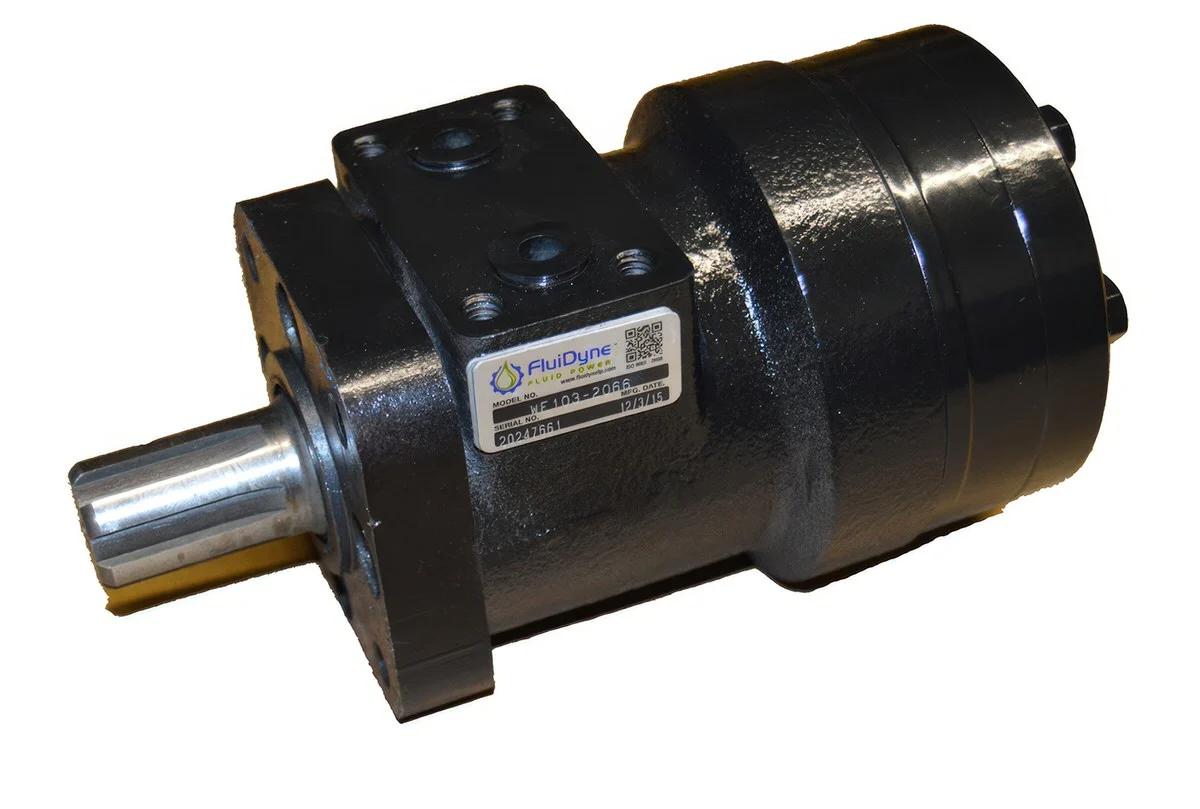

The Fluidyne WF103-5024 is a robust orbital motor engineered for demanding hydraulic applications. This high-performance motor is designed with a 2-bolt SAE A flange mount and a 25MM straight keyed shaft, delivering exceptional power and efficiency in a compact design.
Features and Benefits
- High displacement of 160 CC for optimal performance
- 2-bolt SAE A flange mounting for reliable installation
- Durable 25MM straight keyed shaft to ensure strong power transmission
- 1/2″ NPTF ports for versatile fluid connection
- Compact width of 31.5MM (1.24″) suitable for space-constrained applications
- Constructed with a black paint finish for enhanced durability
- No case drain required, simplifying installation and maintenance
- Made in USA, upholding high manufacturing standards
Specifications
- Model Number: WF103-5024
- Displacement: 160 CC
- Mount Type: 2-Bolt SAE A Flange
- Shaft Type: 25MM Straight Keyed Shaft
- Ports: 1/2″ NPTF
- Width: 31.5MM (1.24″)
- Case Drain: No Case Drain
- Special Features: Use WF1031028 + 25MM Shaft & Key
Applications
- Hydraulic machinery
- Construction equipment
- Agricultural applications
- Material handling systems
- Mobile hydraulic power systems
Quality and Certification
The Fluidyne WF103-5024 is manufactured following strict quality standards to ensure reliability and performance. Each motor undergoes rigorous testing to meet industry certifications and specifications for hydraulic equipment.
For technical support and assistance, contact our product specialists at (800) 823-4937
