Description

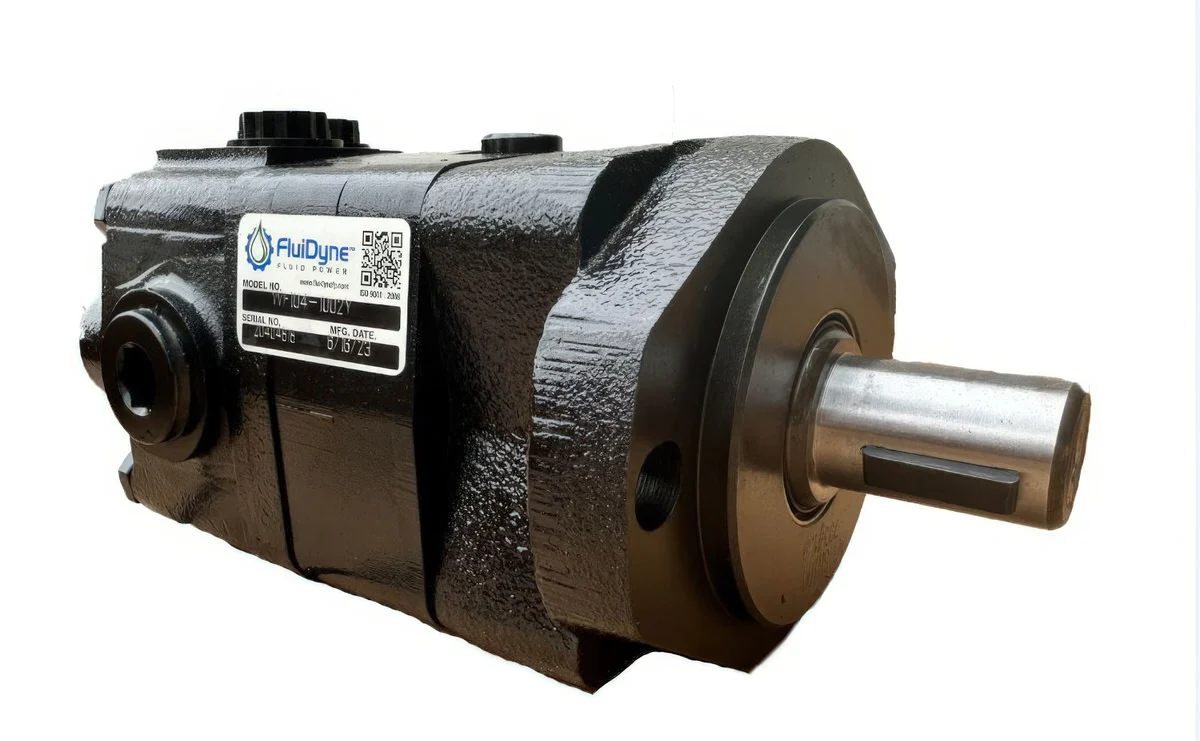

The Fluidyne WF104-1483Y is a robust and versatile orbital motor designed for a wide range of hydraulic applications. With its high efficiency and reliable performance, this model effectively meets the demands of industrial operations.
Features and Benefits
- High displacement of 100 CC ensures optimal power output
- 2-bolt SAE A flange for secure mounting
- 7/8″ 13T splined shaft for enhanced torque transfer
- Dual porting (1 1/16″-12 O-ring ports) for flexible hydraulic setups
- No paint finish allows for easy inspection of the motor
Operating Parameters
This orbital motor is designed to provide reliable function under high pressure and demanding conditions. The motor’s compact design and robust construction are suitable for various applications.
Specifications
- Model Number: WF104-1483Y
- Displacement: 100 CC
- Mount Type: 2-Bolt SAE A Flange Mount
- Shaft Type: 7/8″ 13T Splined Shaft
- Ports: 1 1/16″-12 O-Ring Ports
- Width: 0.79″ (20MM)
- Case Drain: Case Drain (Plugged)
- Special Features: 180° Apart *Dual Porting*
Applications
- Industrial machinery
- Agricultural equipment
- Construction applications
- Mobile hydraulic systems
Quality & Certification
Built under strict quality measures, the Fluidyne WF104-1483Y meets industry standards ensuring durability and reliability. Each motor undergoes rigorous testing to assure top performance.
For technical support and assistance, contact our product specialists at (800) 823-4937
