Description

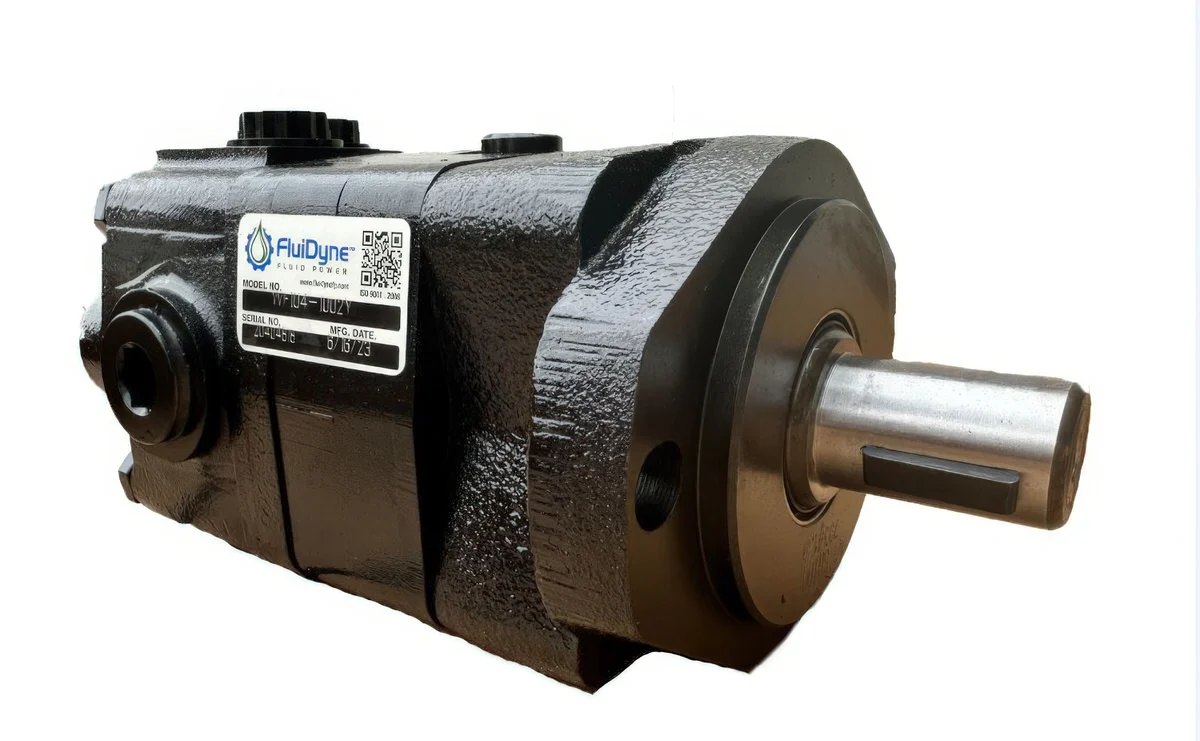

The Fluidyne WF104-1675Y hydraulic flange motor is engineered for high-performance and reliability in demanding hydraulic applications. Designed with a 2-bolt SAE A flange mount, this orbital motor provides versatility and ease of installation, making it ideal for a variety of industrial and mobile applications.
Key Features and Benefits
- 250 CC displacement for robust power output.
- 1″ straight keyed shaft for secure coupling.
- Dual porting configuration with 7/8-14 O-ring ports for efficient fluid transfer.
- Compact design with a width of just 1.65″ (42MM).
- Made in USA, ensuring high-quality manufacturing standards.
Specifications
- Model Number: WF104-1675Y
- Displacement: 250 CC
- Mount Type: 2-Bolt SAE A Flange Mount
- Shaft Type: 1″ Straight Keyed Shaft
- Ports: 7/8-14 O-ring Ports *Dual Porting*
- Width: 1.65″ (42MM)
- Case Drain: 7/16-20 O-ring Case Drain (Plugged)
- Special Features: Rotate Flange 90°
Applications
- Material handling equipment
- Agricultural machinery
- Construction equipment
- Mobile hydraulic applications
- Industrial automation systems
Quality and Certification
The Fluidyne WF104-1675Y is manufactured in line with strict industry standards, undergoing rigorous testing to ensure performance, durability, and compliance with hydraulic applications. Each unit adheres to Fluidyne’s high quality and reliability benchmarks.
