Description

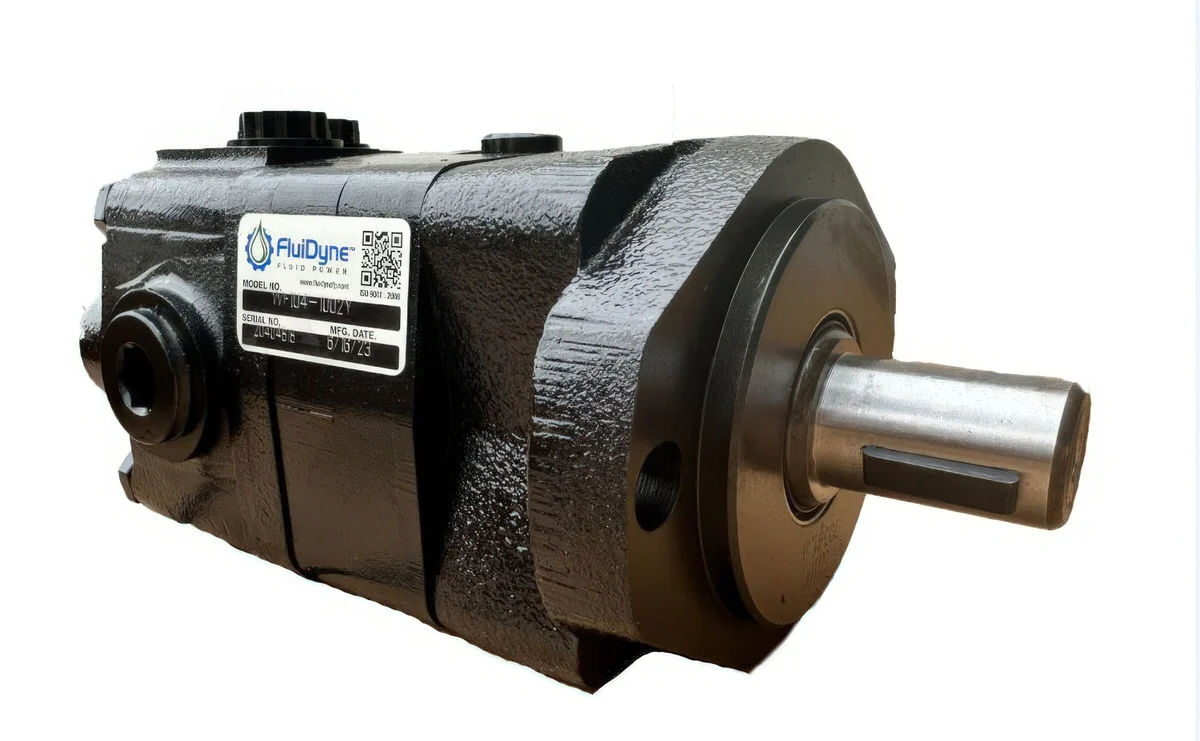

The Fluidyne WF104-1700Y is a robust orbital motor designed for high-efficiency hydraulic applications. This model features a compact design that boasts reliable power transmission and operational smoothness, making it an ideal choice for various industrial uses.
Key Features and Benefits
- High-performance design optimized for minimal friction and maximum efficiency
- Durable construction featuring a corrosion-resistant black paint finish
- 4-bolt magneto mounting configuration for easy installation
- Versatile porting options with dual O-ring ports for enhanced adaptability
- Precision-engineered for consistent torque output across different hydraulic systems
- Made in USA ensuring high quality and reliability standards
Operating Parameters
The WF104-1700Y is engineered to handle demanding applications with:
- Displacement: 080 CC (4.9)
- Shaft Type: 1.25″ 14T splined shaft
- Case Drain: 7/16-20 O’Ring case drain (plugged)
- Mount Type: 4-Bolt Magneto
- Width: 0.63″ (16MM)
- Port Type: 7/8-14 O-Ring Ports, dual porting
