Description

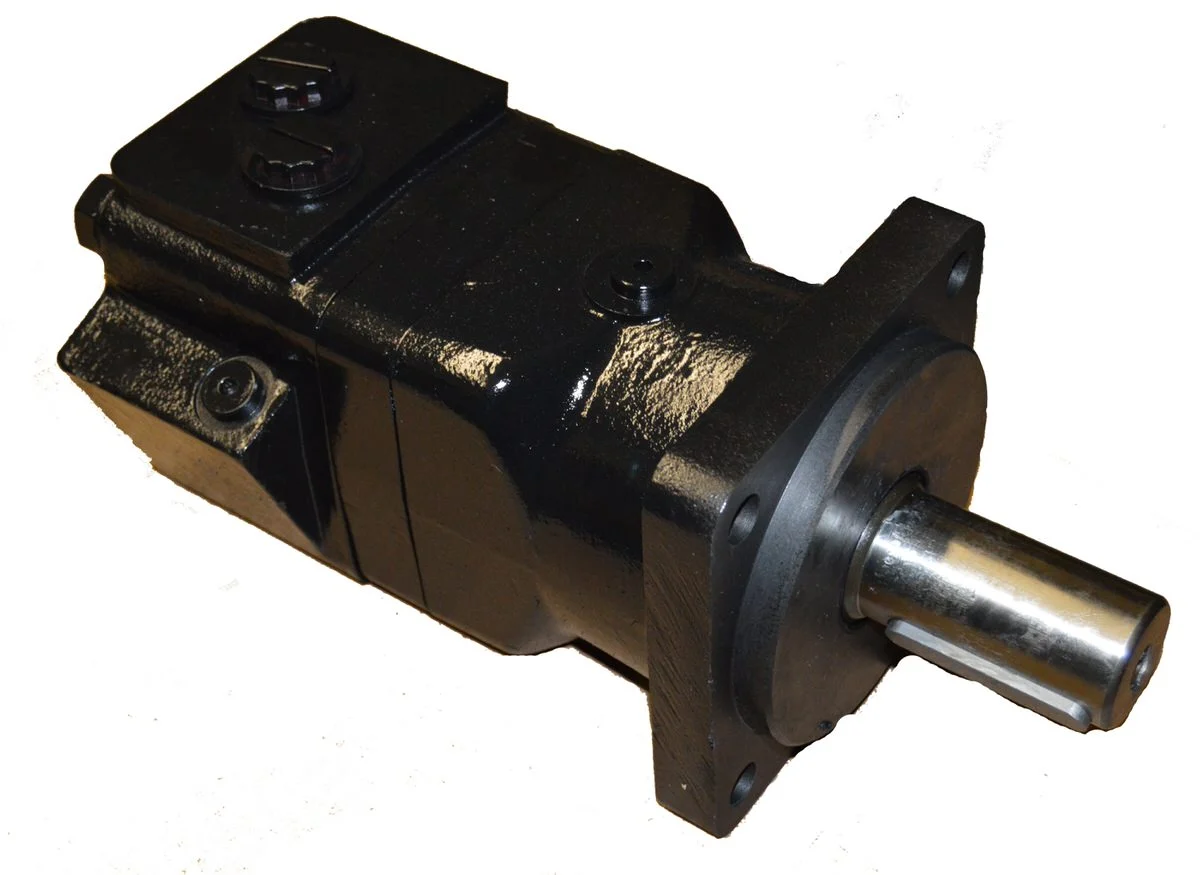

The Fluidyne WF109-1117 is a robust and reliable orbital motor designed specifically for dynamic hydraulic applications. Engineered to deliver superior performance in compact spaces, this motor features a displacement of 200 CC, making it ideal for various industrial tasks.
Specifications
- Model Number: WF109-1117
- Displacement: 200 CC
- Mount Type: 4-Bolt SAE B Flange Mount
- Shaft Type: 1 1/4″ 14T Splined Shaft
- Ports: 1 1/16-12 O-Ring
- Width: 0.83″ (21 MM)
- Case Drain: 7/16-20 O’Ring Case Drain (Plugged)
- Special Features: With Check Valve
Features and Benefits
- Compact design for constrained installation spaces
- High torque capacity for efficient operation
- Precision-engineered components ensure reliability
- Made in USA under strict quality control standards
- Features a check valve for enhanced operational reliability
Applications
- Material handling machinery
- Agricultural equipment
- Mobile hydraulic systems
- Hydraulic drive applications
- Construction equipment
Quality and Certification
The Fluidyne WF109-1117 orbital motor adheres to rigorous industry standards, ensuring durable construction and exceptional performance. Each unit undergoes comprehensive testing to certify reliability and efficiency.
For technical support and assistance, contact our product specialists at (800) 823-4937
