Description

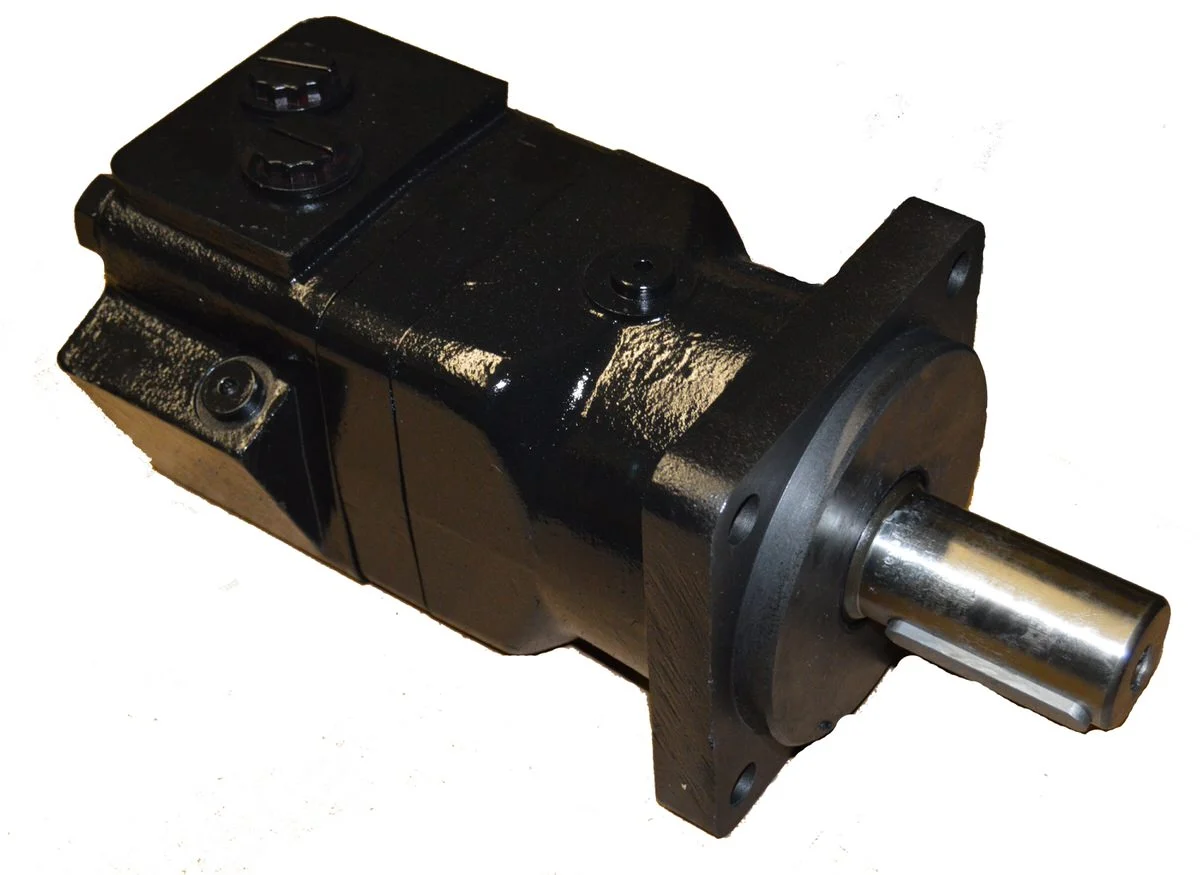

The Fluidyne WF109-1492 is a robust orbital motor engineered for superior performance in hydraulic applications. Known for its reliability and efficiency, this motor features a 500CC displacement and is ideally suited for a wide range of industrial machinery.
Specifications
- Model Number: WF109-1492
- Displacement: 500 CC
- Mount Type: 4-Bolt SAE B Flange Mount
- Shaft Type: 1.25″ Straight Keyed Shaft
- Ports: 1 1/16-12 O-Ring Ports
- Width: 1.38″ (35MM)
- Case Drain: 7/16-20 O’Ring Case Drain (Plugged)
- Special Features: With Check Valve
Features and Benefits
- High displacement motor suitable for demanding tasks
- Durable 4-bolt SAE B flange design for secure mounting
- Straight keyed shaft for efficient power transmission
- Includes a built-in check valve for enhanced operation
- Manufactured in the USA, ensuring high quality standards
Applications
- Construction equipment
- Agricultural machinery
- Material handling systems
- Hydraulic lift systems
- Mobile machinery
Quality and Certification
The Fluidyne WF109-1492 is developed under strict quality assurance protocols, adhering to industry certifications that guarantee consistency and reliability. Each motor undergoes rigorous testing to meet operational standards for hydraulic use.
For technical support and assistance, contact our product specialists at (800) 823-4937
