Description

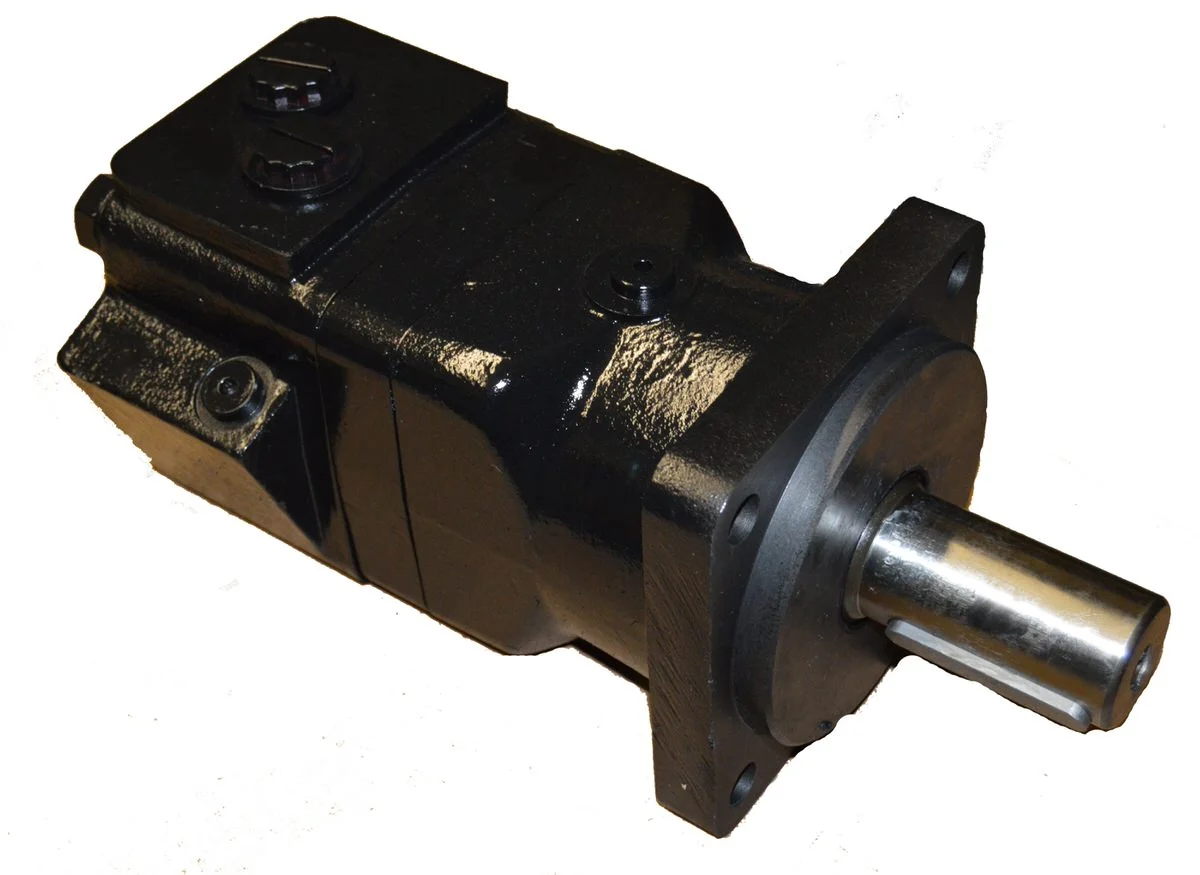

The Fluidyne WF109-5003 is a robust orbital motor designed for a variety of hydraulic applications, featuring precision engineering that ensures reliable performance and efficiency. With a displacement of 250 CC, this motor is tailored for demanding environments where reliability and power are paramount.
Specifications
- Model Number: WF109-5003
- Displacement: 250 CC
- Mount Type: 4-Bolt SAE B Flange Mount
- Shaft Type: 1 1/4″ 14T Splined Shaft
- Ports: G 3/4 BSP O-Ring Ports
- Case Drain: G 1/4 BSP O-Ring Case Drain (Plugged) With Check Valve
- Width: 0.56″ (14MM)
Features and Benefits
- High-performance design for efficient power output
- Durable construction for increased longevity
- Versatile 4-bolt SAE B flange mount configuration
- Reliable G 3/4 BSP O-Ring ports for secure connections
- Made in USA under rigorous quality standards
Applications
- Industrial machinery
- Agricultural equipment
- Construction machinery
- Material handling systems
- Other mobile hydraulic systems
Quality and Certification
The Fluidyne WF109-5003 is manufactured according to the highest industry standards. Each unit undergoes rigorous testing to guarantee top-tier performance and durability, ensuring that it can handle the most challenging hydraulic tasks. This product reflects Fluidyne’s commitment to excellence.
For technical support and assistance, contact our product specialists at (800) 823-4937
