Description

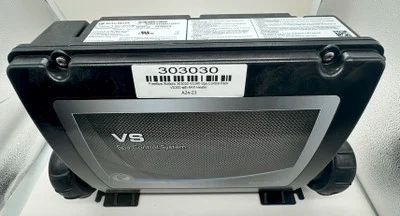

FreeFlow Spa Pack controller 303030 or WAT3030303 model VS300 system control box with 4kW heater by Balboa.
Power requirements: 120/240 VAC 60hz, 16/32A, Class A GFCI-protected service (circuit breaker rating = 20A/40A max)
3 wires (hot, neutral, ground)/ 4 wires (hot, hot, neutral, ground)
This version of the VS300 spa pack is the exact replacement configuration and part for Watkins Freeflow spas.
Freeflow Spa VS300 System Outputs
- 120v pump 1, 2-speed
- 120v ozonator (ozonator voltage must be same as pump 1 – ozone runs with pump 1 on low speed)
- 12v spa light
- 4.0 kW heater at 240v (if running 120v, heater output is about 25%)
Circuit board not available separately.
