Description

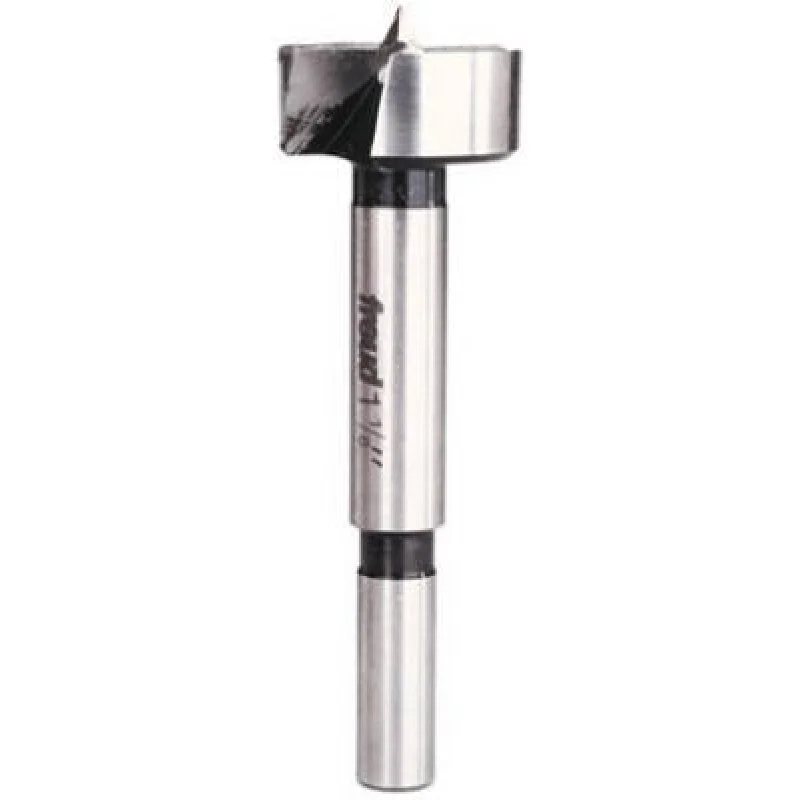

The FREUD FB-008 is a 1-1/8 inch Forstner bit from the Diablo Series, manufactured from high speed steel for clean, accurate boring in wood and most wood-based products. Forstner bits cut flat-bottomed holes with minimal tearout, making them a go-to choice for cabinetmakers, carpenters, and millwork installers who need precise, controlled results. The sharp center spur locates the center of the bore accurately before the rim cutter engages, reducing drift on entry. With a 3/8 inch shank and 3-1/2 inch overall length, this bit fits standard drill chucks and drill presses commonly found in residential and commercial woodworking operations.
The FB-008 is suited for use in solid wood, plywood, MDF, particleboard, and similar engineered wood products. Typical applications include drilling flat-bottom holes for shelf pin hardware, pocket holes for joinery, hinge cup mortises, and overlapping hole patterns where a standard twist bit would wander. Carpenters, cabinetmakers, and finish installers will find this bit appropriate for both bench drill press work and handheld drill applications where a stable entry point is required.
Key Features
- 1-1/8 inch cut diameter for precise flat-bottom boring
- High speed steel construction for durability across wood and engineered wood products
- Sharp center spur for accurate hole location and reduced drift
- Flat-bottom cutting geometry suited for pocket holes, overlay hinge mortises, and overlapping hole layouts
- 3/8 inch shank diameter fits standard drill chucks and drill press collets
- 3-1/2 inch overall length provides clearance for most bench and handheld drilling setups
Compatibility
Designed for use in handheld drills and bench drill presses equipped with a standard 3/8 inch or larger chuck. Suitable for solid wood, plywood, MDF, particleboard, and most wood composite products.
Installation Notes
Installation is performed by carpenters, cabinetmakers, and general woodworking trades. Secure the workpiece firmly before drilling to prevent movement during bit entry. Run the bit at a speed appropriate for the material density and bit diameter larger diameter Forstner bits generally require lower RPM settings to maintain cut quality and bit life. Inspect the center spur and rim cutters for sharpness before use; a dull bit increases blowout risk on the exit face of the workpiece.
Technical Specifications
- Cut Diameter: 1-1/8 inches
- Overall Length: 3-1/2 inches
- Shank Diameter: 3/8 inches
- Material: High Speed Steel
- Weight: 2.78 pounds
- Series: Diablo
Standard Information
- Brand: FREUD
- Manufacturer Part Number: FB-008
