Description

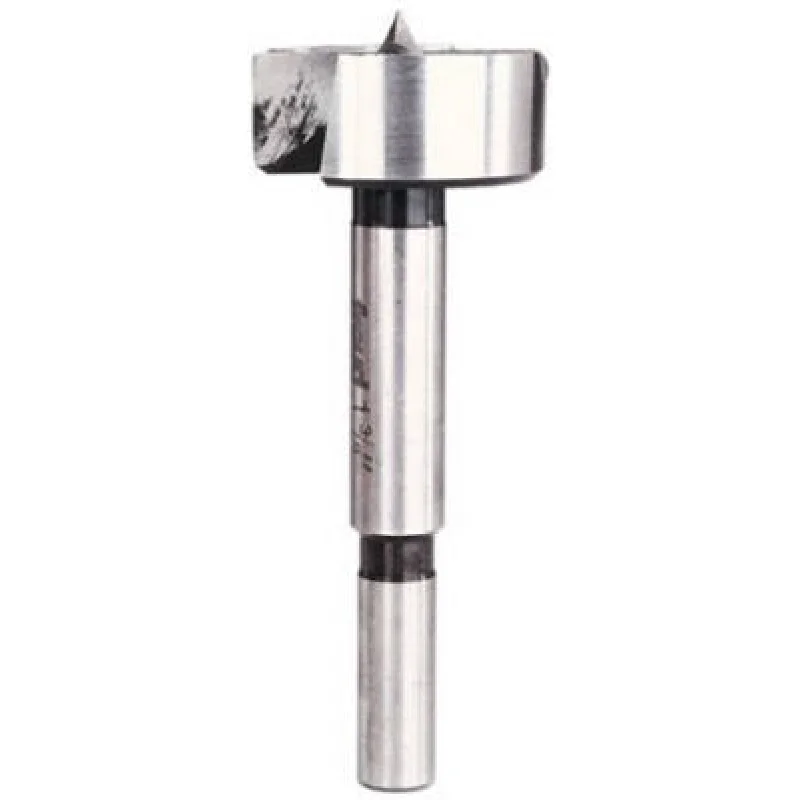

The FREUD FB-010 is a high speed steel Forstner bit from the Diablo series, designed to drill clean, flat-bottom holes in wood and most wood-based products. With a 1-3/8 inch cut diameter and a 3/8 inch shank, it fits standard drill chucks and handles typical boring applications on the job site or in the shop. The sharp center spur registers precisely at the intended hole center before the cutting edge engages, reducing wander and improving hole-to-hole consistency. This bit is appropriate for carpenters, cabinet installers, millwork crews, and woodworking professionals who need accurate, repeatable results in solid wood, plywood, MDF, and engineered panels.
The FB-010 is suited for residential and light commercial woodworking applications where flat-bottom holes are required. Common use cases include hinge mortises, shelf pin boring, pocket hole setups, and overlapping hole patterns for curved cuts or decorative work. The 3-1/2 inch overall length provides enough clearance for most drill press and handheld drill applications without requiring an extension. It is particularly useful in cabinet and millwork installations where hole placement accuracy directly affects fit and finish.
Key Features
- High speed steel construction for durability across wood and engineered wood products
- Sharp center spur accurately locates the hole center before cutting begins
- Flat-bottom hole geometry suitable for hinge cups, shelf pins, and pocket applications
- Supports overlapping hole patterns for freeform or curved cutouts
- 3/8 inch shank fits standard drill chucks on both drill presses and handheld drills
- Diablo series design focused on clean entry and exit cuts in wood substrates
Compatibility
Designed for use in wood and most wood-based products including solid lumber, plywood, MDF, and similar engineered panels. Fits any drill press or handheld drill accepting a 3/8 inch shank.
Installation Notes
This bit is installed and operated by carpenters, cabinet installers, and woodworking professionals using a drill press or handheld power drill. Secure the workpiece firmly before drilling to prevent movement and ensure hole accuracy. When drilling through-holes, back the workpiece with scrap material to minimize tear-out on the exit face. Inspect the center spur and cutting edges before use and replace the bit if chipping or dullness is observed, as a damaged Forstner bit can cause ragged holes and workpiece damage.
Technical Specifications
- Cut Diameter: 1-3/8 inches
- Overall Length: 3-1/2 inches
- Shank Diameter: 3/8 inches
- Material: High Speed Steel
- Weight: 3.16 pounds
- Series: Diablo
- Package Quantity: 12
Standard Information
- Brand: FREUD
- Manufacturer Part Number: FB-010
