Description

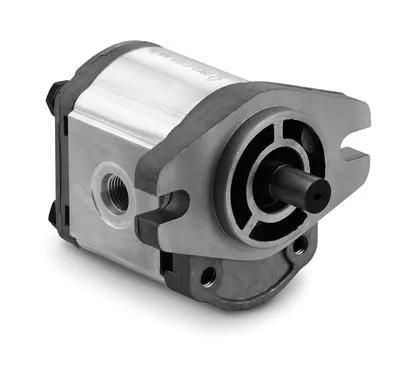

Discover the GP-F10-20-P-C Hydraulic Gear Pump, a versatile and high-pressure pump suitable for a wide range of hydraulic systems. This pump features an aluminium center section and cast iron end plates, ensuring durability and reliable performance. With 8 displacement sizes ranging from 0.07 to 0.48 in3/rev (1.3 to 8.0 cm3/rev), the GP-F10-20-P-C offers flexibility to meet different flow rate requirements.**Key Features and Benefits:**- High-pressure hydraulic gear pump- Constructed with durable aluminium and cast iron materials- 8 displacement sizes for versatile applications- Standard SAE AA mounting flange with SAE-8 inlet and SAE-6 outlet ports- 1/2” diameter straight shaft with 1/8” key**Recommended Working Conditions:**- Filtration: 25 micron or better- Oil Viscosity: 7 – 700 cSt- Inlet Pressure: 12 – 32 psi absolute- Oil Temperature: -25° – 80°C (-12° – 175°F)- Ambient Temperature: -22° – 55°C (-8° – 130°F)Whether you need a reliable pump for your hydraulic equipment or industrial machinery, the GP-F10-20-P-C is designed to deliver consistent performance in demanding environments. Upgrade your hydraulic system with this high-pressure gear pump today!
