Description

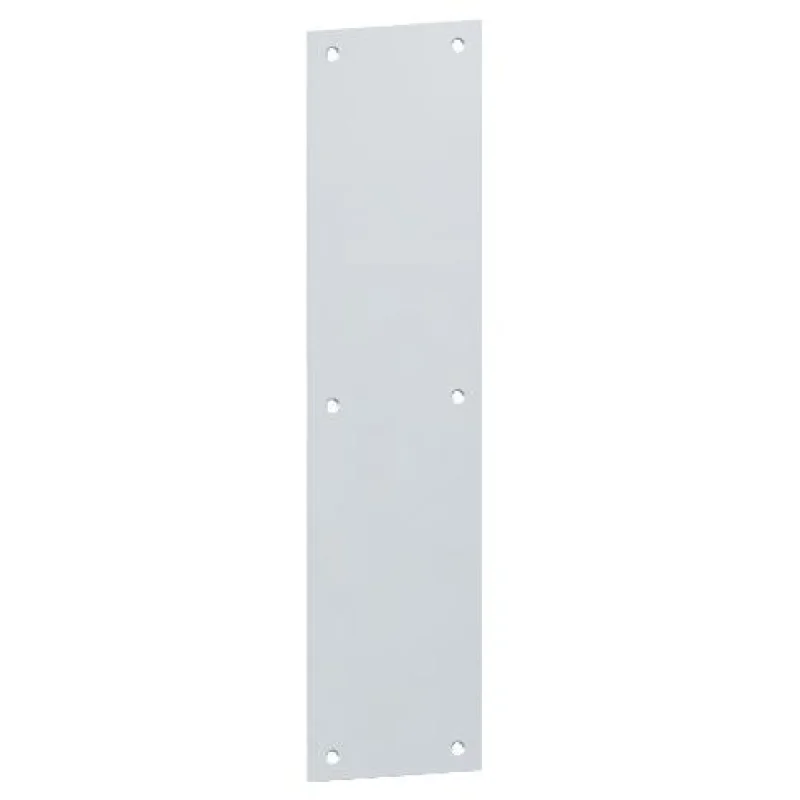

The HAGER HINGE 30S81632D is a square corner push plate finished in satin stainless steel. It mounts to the push side of a door to protect the face of the door from repeated hand and palm contact, reducing surface wear and finish damage over time. Measuring 8 inches wide by 16 inches long and just 0.13 inches thick, this low-profile plate installs flush against the door surface. The satin stainless steel finish resists corrosion and maintains appearance in high-traffic environments. This plate is installed by commercial door hardware professionals, locksmiths, and general contractors during new construction or retrofit projects.
This push plate is suited for commercial and institutional applications including office buildings, schools, healthcare facilities, and retail spaces where doors experience frequent daily use. The square corner profile fits standard commercial door preparations and pairs with typical door pull or lever hardware on the opposite face. It is sold individually and is also available in case quantities of 5 units.
Key Features
- Square corner design fits standard commercial door preparations
- Satin stainless steel finish provides corrosion resistance in high-traffic environments
- Low-profile thickness of 0.13 inches for a flush, unobtrusive mount
- Plate dimensions of 8 inches wide by 16 inches long provide broad palm coverage
- Lightweight at 1.75 pounds for easy single-technician installation
Compatibility
Designed as an OEM-style replacement or new-installation push plate for standard commercial and institutional doors requiring square corner push plate hardware.
Installation Notes
Push plates are typically installed by commercial door hardware professionals or general contractors using basic hand tools including a drill and appropriate fasteners for the door material. Fasten securely to the door face per the door manufacturer recommendations and applicable local building codes. Ensure the door surface is clean and flat before mounting to achieve full contact across the plate. Do not over-torque fasteners on hollow-core or glass-filled composite doors, as surface damage may result.
Technical Specifications
- Length: 16 inches
- Width: 8.2 inches
- Thickness: 0.13 inches
- Weight: 1.75 pounds
- Finish: Satin Stainless Steel
- Corner Style: Square Corner
- Sales Unit: Each
- Case Quantity: 5
Standard Information
- Brand: HAGER HINGE
- Manufacturer Part Number: 30S81632D
