Description

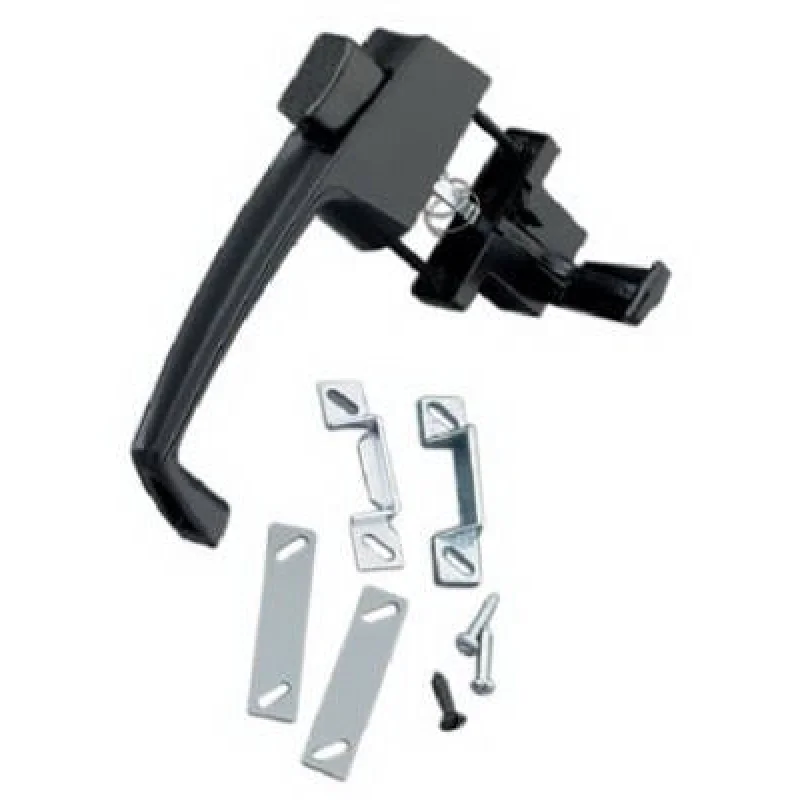

The HAMPTON PRODUCTS-WRIGHT V333BL is a black push button latch designed for out-swinging wood or metal doors. It fits doors ranging from 1 inch to 1-1/4 inches in thickness and installs through three 5/16-inch holes with an installation hole spacing of 1-3/4 inches. The latch includes two sizes of strikes and shims to allow adjustment for reliable latching across varying door and frame conditions. A no-lockout feature prevents accidental lockouts during installation or daily use. Licensed contractors and general tradespeople install this latch on commercial or residential door applications where a simple, functional push-button mechanism is required.
The V333BL is suited for out-swinging wood or metal doors in light commercial, industrial, or residential settings. It is commonly installed on utility doors, outbuildings, storage rooms, and similar applications where a straightforward push-button latch without a key-locking function is preferred. When key-locking capability is needed, the unit can be converted to a key locking set using the V3 cylinder, making it adaptable for locations where security requirements may change over time.
Key Features
- Fits door thicknesses from 1 inch to 1-1/4 inches
- Installs in three 5/16-inch holes with 1-3/4-inch hole spacing
- Includes two sizes of strikes and shims for latching adjustment
- No-lockout feature prevents accidental lockout
- Convertible to key locking set using the V3 cylinder
- Compatible with out-swinging wood or metal doors
Compatibility
Designed for out-swinging wood or metal doors with a thickness of 1 inch to 1-1/4 inches. Can be converted to a key locking set using the V3 cylinder.
Installation Notes
Installation is performed by a general contractor, locksmith, or qualified tradesperson. Before installation, confirm the door is in the closed position and that the frame is square to ensure proper latch alignment. Drill three 5/16-inch holes at the specified 1-3/4-inch spacing before mounting the latch body. Use the included strikes and shims to fine-tune latch engagement with the strike plate.
Technical Specifications
- Finish: Black
- Door Swing: Out swinging
- Compatible Door Material: Wood or Metal
- Door Thickness Range: 1 inch to 1-1/4 inches
- Installation Hole Spacing: 1-3/4 inches
- Installation Hole Size: 5/16 inches (3 holes required)
- Package Quantity: 6
- Weight: 4.1 pounds
Standard Information
- Brand: HAMPTON PRODUCTS-WRIGHT
- Manufacturer Part Number: V333BL
