Description

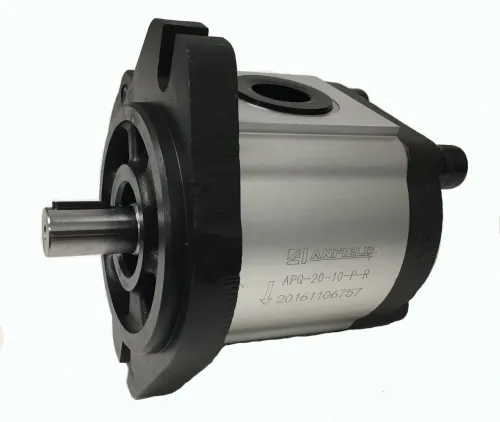

High-Pressure Aluminum Gear Pump, 11.84 GPM
Manufacturer Model: APQ-20-25
Anfield APQ-20 series gear pumps are high-pressure hydraulic pumps with cast iron end caps and aluminum housings. These high flow hydraulic pumps are built standard with SAE A-2 bolt mounting, SAE-12 inlet ports, and SAE-10 outlet ports. Alternate configurations are available upon request. The model APQ-20-25-P-R aluminum hydraulic gear pump is rated to 11.84 GPM at 1800 RPM. These pumps are a common replacement for ones manufactured by Dynamic Fluid Power.
View: APQ-20 Series Gear Pumps PDF
Product Description:
- High-pressure aluminum gear pump with cast iron end plates
- SAE A-2 bolt mounting
- SAE-12 inlet ports
- SAE-10 outlet ports
- 5/8″ straight shaft with 5/32″ key
Product Specifications:
- 11.84 GPM @ 1800 RPM
- 1.52 cubic inch displacement
- 3650 PSI
- 3600 max. RPM
- 10.19 lbs
Alternate manufacturer lookup code:
- APQ-20-25-P-R
- AP20-25
