Description

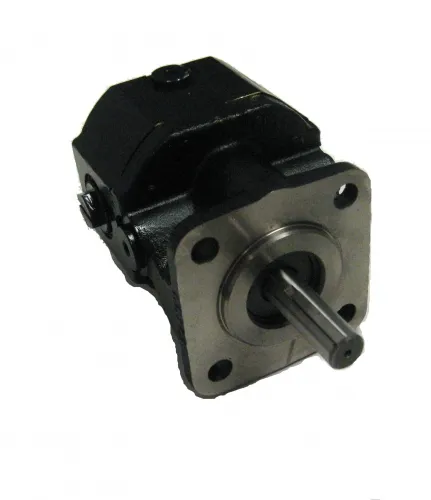

High Pressure Haldex Barnes Gear Pump, 10562
Northern 10562
Pump is ideal for use on equipment in the mobile, agricultural, construction, and mining industries. Also suitable for PTO pumps, machine tools, refuse haulers and compacting equipment.
View: Haldex Gear Pumps 10561 to 10567 Brocheure
This hydraulic pump is similar to: MTED Series, Parker D Series, Rexroth S12 Series, and Webster YB Series pumps.
Product Specifications:
| Displacement: | 0.194 CI/revolution |
| Flow: |
0.75 GPM @ 1800 RPM 1.5 GPM @ 3600 RPM |
| Max Pressure: |
Continuous: 3000 PSI Intermittent: 4000 PSI |
| Shaft: | 1/2″ dia. x 1.5″ long |
| Shaft key: | 1/8″ square key |
| Port Size: | 9/16-18 SAE6 |
| Mounting: | Standard 4-bolt with 1.78″ pilot |
| Rotation: | Bi-Rotational |
| Materials: | Cast Iron |
| Ship Weight: | 5 lbs |
