Description

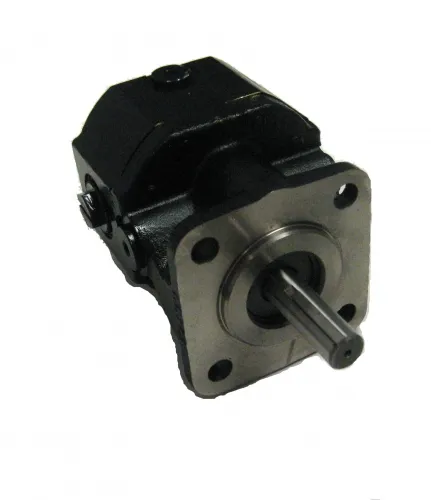

Haldex Barnes High-Pressure Hydraulic Gear Pump, 10565
Northern 10565
Gear hydraulic pump is ideal for use on equipment in the mobile, agricultural, construction, and mining industries. Also suitable for PTO pumps, machine tools, refuse haulers and compacting equipment.
View: Haldex Gear Pumps 10561 to 10567 Brocheure
This hydraulic high-pressure gear pump is similar to: MTED Series, Parker D Series, Rexroth S12 Series, and Webster YB Series pumps.
Product Specifications:
| Displacement: | 0.258 CI/revolution |
| Flow: |
2 GPM @ 1800 RPM 4 GPM @ 3600 RPM |
| Max Pressure: |
Continuous: 2300 PSI Intermittent: 4000 PSI |
| Shaft: | 1/2″ x 1.5″ long |
| Shaft key: | 1/8″ square key |
| Port Size: | 3/4-16 SAE 8 |
| Mounting: | Standard 4-bolt with 1.78″ pilot |
| Rotation: | Bi-Rotational |
| Materials: | Cast Iron |
| Ship Weight: | 5 lbs |
This pump will cross/replace former John S. Barnes part numbers: 1300096G1216C3A300N00
Alternate Product Lookup Codes:
- B250059NH
