Description

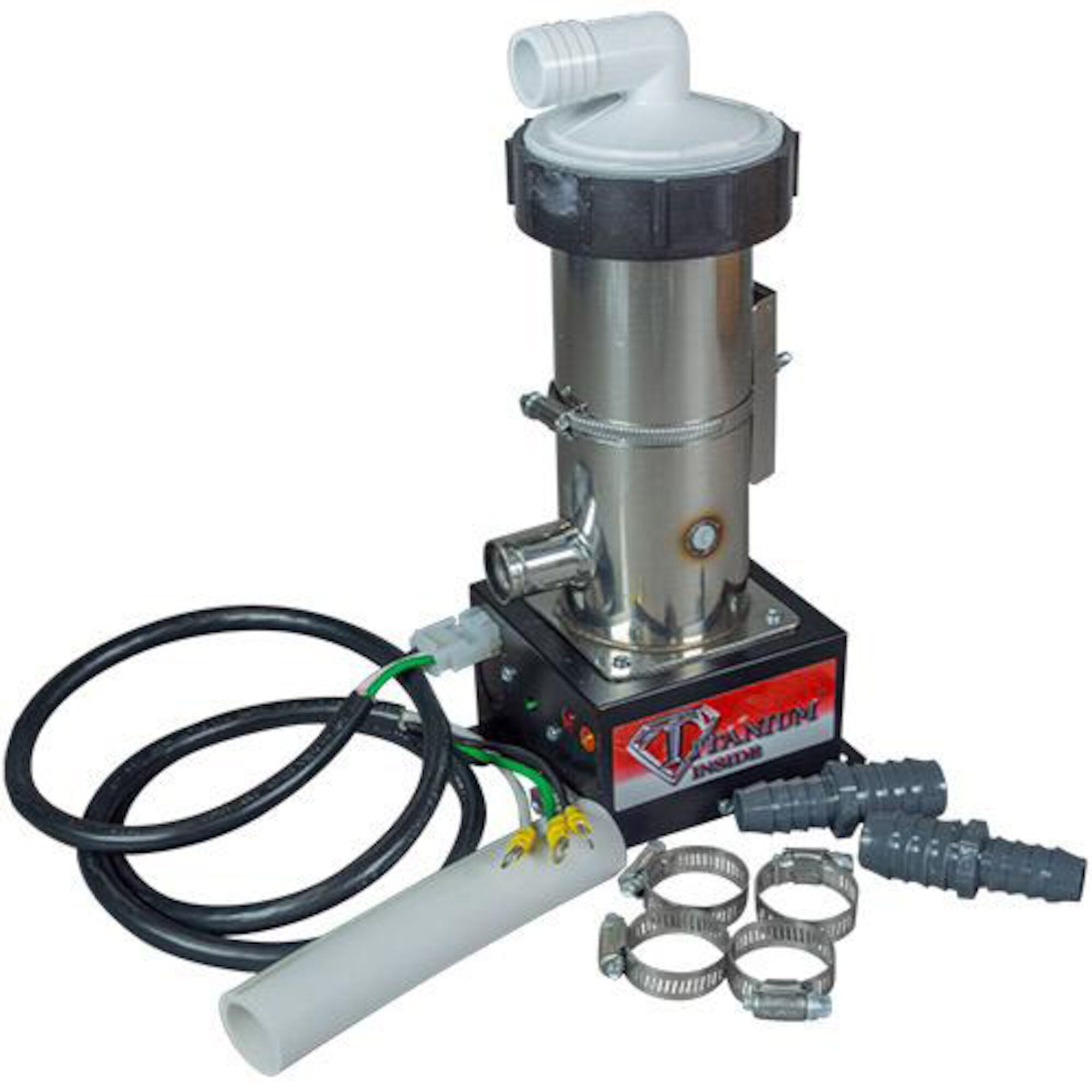

HydroQuip Universal Series 27-V310-7T-K: Premium Low Flow Titanium Heater
Product Overview
As a retailer of hot tub spare parts, I’m featuring the HydroQuip Universal Series Vertical Low Flow Heater, a premium 5.5kW heating solution featuring a titanium element and comprehensive installation package. This versatile unit is specifically designed for low-flow applications with multiple configuration options.
Key Features
- Premium titanium heating element
- Built-in manual reset hi-limit
- Visual heater operation indicator
- Triple pressure switch taps
- Reversible mounting bracket
- Adjustable sensor cover
- Complete fitting package
Technical Specifications
| Specification | Detail |
|---|---|
| Model Number | 27-V310-7T-K |
| Heater Type | Vertical Low Flow |
| Power Rating | 5.5kW |
| Voltage | 230V |
| Water Connections | 3/4″ Barb Inlet/Outlet |
| Overall Length | 12-3/8 inches |
| Element Material | Titanium |
| Cord Length | 60 inches |
| Plug Type | 3-pin Amp |
Installation Package
Comprehensive kit includes:
- 1″ x 12″ tubing
- Two 3/4″ x 1″ barbed adapters
- 3″ x 1″ 90-degree barbed tailpiece
- 60″ power cord with 3-pin Amp plug
- Mounting hardware and clamps
Advanced Features
Professional-grade components include:
- Titanium element for superior durability
- Manual reset capability for hi-limit errors
- Three pressure switch mounting options
- Heater operation indicator light
- Adjustable sensor positioning
Design Benefits
Versatile configuration options:
- Reversible foot bracket for flexible mounting
- Multiple pressure switch tap locations
- Adaptable sensor cover design
- Various fitting options included
Performance Characteristics
Engineered for low-flow systems:
- Optimized for reduced flow rates
- Efficient heat transfer
- Reliable temperature control
- Consistent operation
Alternate Part Numbers
- 2-00-0180
- 27-V000-7T-SPA10
