Description

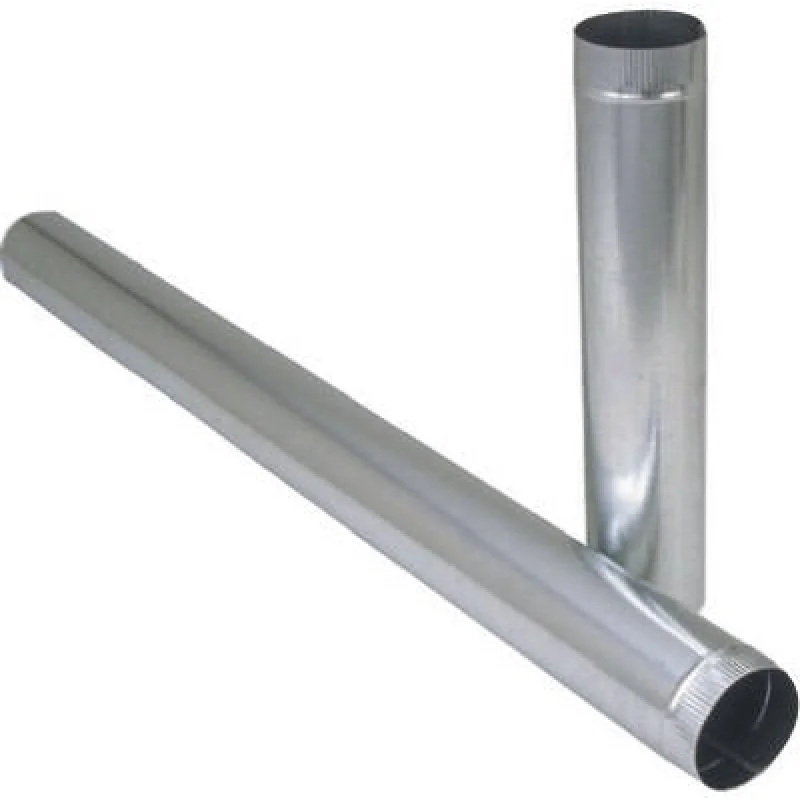

The IMPERIAL MFG GROUP USA INC GV0356 is a 28-gauge galvanized steel furnace pipe section measuring 4 inches in diameter and 24 inches in length. It is a straight vent connector segment used to route flue gases from gas-fired or oil-fired furnaces and heating appliances to the vent system or chimney. The galvanized steel construction resists corrosion in typical residential heating environments. HVAC technicians and plumbers install this type of pipe section when assembling or extending a B-vent or single-wall metal vent connector system.
This pipe section is suited for residential and light commercial heating applications where single-wall galvanized vent connector pipe is the required or code-permitted solution. It fits into standard round vent connector runs connecting a furnace, boiler, or water heater flue outlet to the venting system. The 4-inch diameter is a common size for mid-range residential gas furnaces and water heaters. This SKU is sold in a package quantity of 10 sections, making it practical for new installations or service work requiring multiple straight runs.
Key Features
- 28-gauge galvanized steel construction for corrosion resistance in flue gas environments
- 4-inch diameter fits standard residential furnace and water heater flue outlets
- 24-inch length provides a full straight run segment for vent connector assemblies
- Package quantity of 10 sections supports larger installation or service jobs
- Single-wall round pipe design for straightforward field assembly
Compatibility
Designed as a standard single-wall galvanized vent connector pipe for use with residential gas-fired furnaces, boilers, and water heaters requiring a 4-inch flue outlet connection.
Installation Notes
Single-wall galvanized furnace pipe is installed by qualified HVAC technicians or plumbers in accordance with NFPA 54 and local mechanical codes. Always shut down and allow the appliance to cool fully before servicing or replacing vent connector sections. Joints should be secured with sheet metal screws and assembled with crimped end inserted in the direction of flue gas flow. Single-wall vent connector pipe must maintain required clearances to combustibles as specified by the appliance manufacturer and local code.
Technical Specifications
- Diameter: 4 inches
- Length: 24 inches
- Gauge: 28 GA
- Material: Galvanized Steel
- Package Quantity: 10 pieces
- Weight: 14.18 pounds
- Unit of Measure: EA
Standard Information
- Brand: IMPERIAL MFG GROUP USA INC
- Manufacturer Part Number: GV0356
