Description

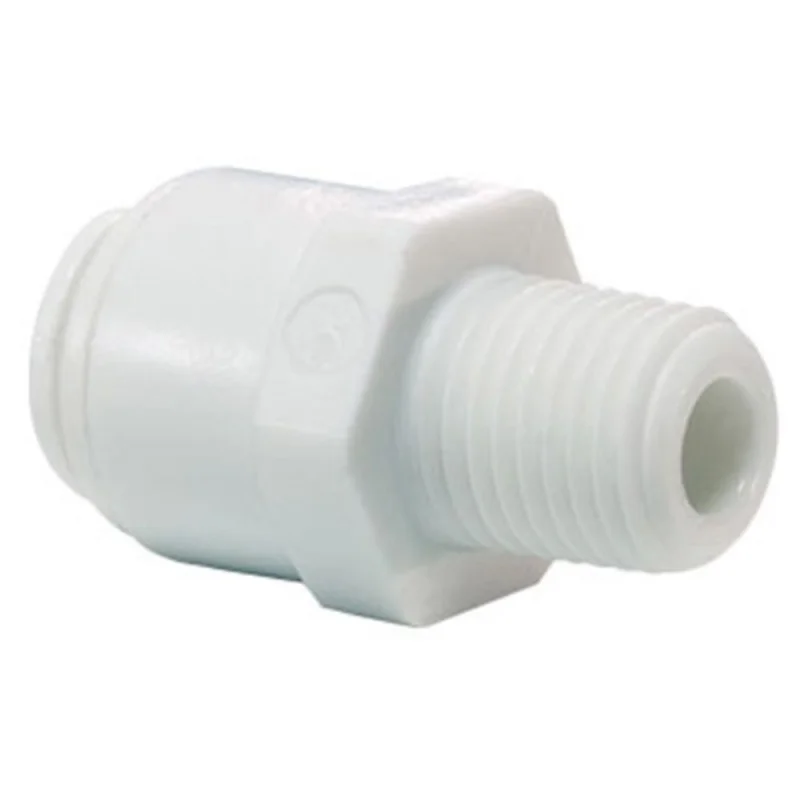

The John Guest male connector makes connecting tubing to female NPT threads quick and easy. Manufactured in white acetal with food grade EPDM O-ring, these fittings were developed for the residential filtered water market but are also suitable for other potable liquids.
Features:
- Push-fitTechnology creates reliable, leak-free connections
- Used to connect OD tubing sizesto female NPT threads
- Compatible with plastic or copperOD sized tubing
- Made with lead free materials
- Acetal body with food grade EDPMO-Ring
- Food Quality and suitable forpotable liquids and pure water applications
- Connect, disconnect, andreconnect in seconds without tools
Working pressure and temperature:
- Max. 150 psi at 70 F
- Max. 100 psi at 150 F
Note: Not suitable for compressed air and vacuum applications.
Note: These items are not suitable air/pneumatic or vacuum applications.
JG white acetal is not suitable for air due to seal consisting of EPDM.
Specifications
| Application | Water, food & beverage |
|---|---|
| Body Material | Acetal Copolymer |
| Inlet/Outlet Connection | 1/8″ MPT |
| Max Pressure (Psi) | 150 |
| Max Temp (F) | 150 |
| Min Pressure (Psi) | 0 |
| Min Temp (F) | 33 |
| Mounting Options | Thread |
| Push-In Size | 1/4″ OD |
| Seal Material | EPDM |
| Series | CI |
| Size | 1/8″ |
| Color / Finish | White |
| Connection Type | Male (MPT) |
| Origin | UK |
| Sub-Type | Male Adapter |
| Type | Adapter |
| Certifications | NSF 61, NSF 51, NSF 372 |
