Description

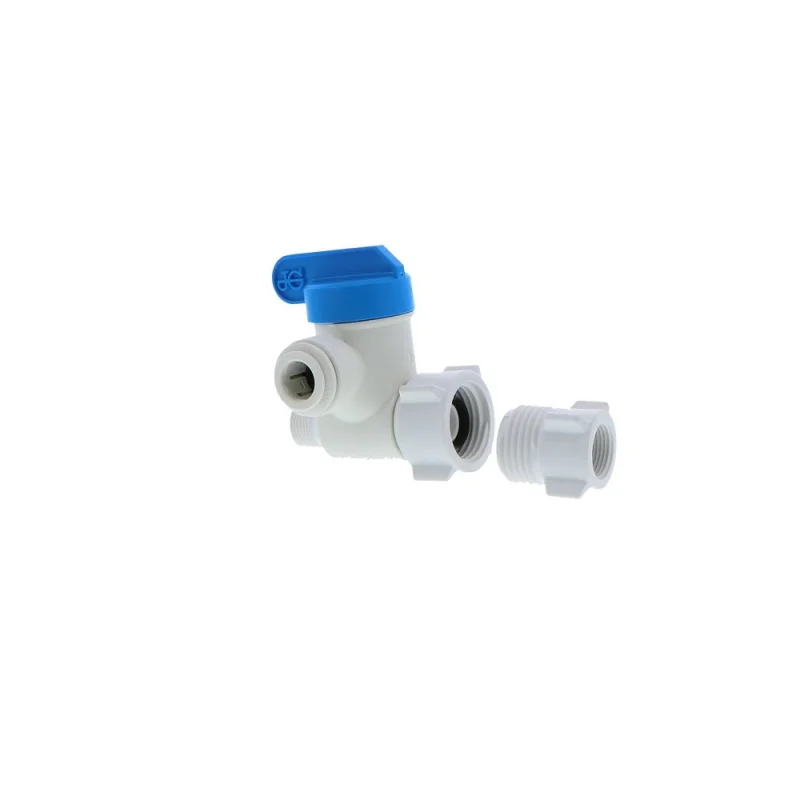

TheJohn Guest Angle Stop Adapter Valveconnects between the stop valve and riser to provide a water supply feed line for applications in filtration systems, RO systems, coffee machines, and ice makers. The Push-fit technology makes installations quick and easy. They are manufactured in white polypropylene with food grade EPDM seals, with plated lead-free brass threads.
Features:
- For use with plastic or copper OD sized tubing
- For cold water supply use only
- Quarter turn to open or close
- White Polypropylene body, EPDM seals
- Lead Free materials
- Quick and easy connection/disconnection
- NSF51 and NSF61 listed
- Not suitable for compressed air, explosive gases, petroleum spirits and other fuels or for heating systems
Working pressure & temperature:
- Max 145 psi at 68F
- Max 58 psi at 140F
- Min 34F/1C
Do Not Use these Valves:
- In a partially open position to control flow
- To provide a permanent termination
- Without tubing assembled or plugged (or threaded connections sealed)
- As a tap of faucet
