Description

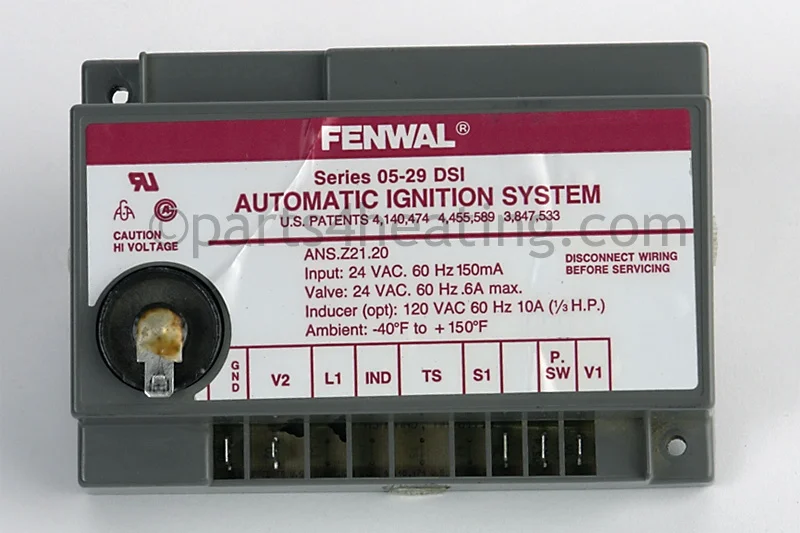

Fenwal 05-296623-751 Ignition Control Direct Spk 24 VAC CSA, Ignition Time 4.7 Seconds.
Direct Replacement This is no longer available, you will be provided with suitable factory replacement. Used on the Heatilator gas log as well as, several other appliances. GC300 series
Technical Specification
SPECIFICATIONS
| Size | With Enclosure: 5.69 x 3.94 x 1.87 in (144.4 x 99.9 x 47.5 mm) Without Enclosure: 5.50 x 3.75 x 2.00 in (139.7 x 95.3 x 50.8 mm) |
| Weight (with enclosure) | Approximately 7.0 oz (200 g) |
| Input Voltage | 24 VAC %/-15%, 50/60 Hz |
| Input Current Drain | 90 mA RMS maximum (270 mA peak) while sparking. Does not include valve power. |
| Valve Relay Contact Rating | 1.0 A (Inrush 2.5 A maximum) |
| Combustion Blower Relay | 8A @ 250 VAC (1/4 HP) |
| Prepurge | None, 15 or 30 seconds depending on model. Without prepurge there is less than 1.0 second delay before single try for ignition. |
| Ambient Temperature Limits | -40 def. F and 힞 deg. F ( -40 and deg. C) |
| Moisture Resistance | Each module is conformal coated to operate to 90% R.H. However, care must be taken to protect module from direct exposure to water. |
| Tries for Ignition | Available in one- or three-try versions. |
| Trial-for-Ignition Periods | 3.3, 4.7, 6.8, 10.0, or 12.0 seconds, depending on model. |
| Flame Failure Retry | When loss of flame occurs after the initial try for ignition. the control system provides one retry on single-try models and two retries on three-try models |
| Flame Current | 5 microamp minimum |
| Flame Failure Response Time | Within 0.8 second |
| Spark Rate | 60 sparks per second (synchronous) |
| Types of Gas | Natural. LP, or manufactured |
| Connections | 1/4 inch spade type (3/16 inch for V1) |
| Sensor | Single spark and sense using high voltage spark electrode as the sensing element or remote sensing using a separate sensing element. |
| Enclosure (Optional) | Gray Noryl fire retardant plastic |
|
CONTROL CONFIGURATION |
|
|
Method of Flame Sensing |
Single Spark and Sense |
|
Tries for Ignition |
Single Try for Ignition |
|
Mounting/Enclosure Configuration |
Fire Retardant Plastic Enclosure |
|
Prepurge Period |
No Prepurge |
|
Blower Relay |
No Relay |
|
Trial-For-Ignition (TFI) Time |
4.7 Seconds |
