Description

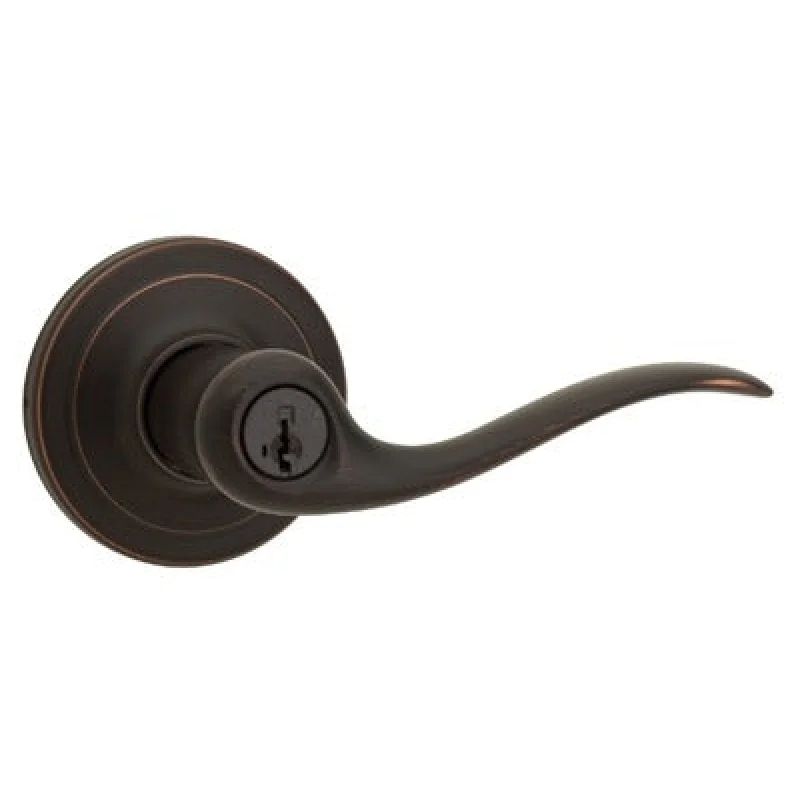

The KWIKSET 740TNL 11P SMT CP K4 is a Tustin Series keyed entry lever designed for residential door hardware applications. Finished in Venetian Bronze, this lever features SmartKey rekeying technology, allowing qualified installers to rekey the lock to a new key without removing the cylinder. The 6-way adjustable steel latch accommodates both 2-3/8 inch and 2-3/4 inch backsets as well as 7/8 inch and 1 inch drive-in configurations, making it compatible with a wide range of door prep situations. The package includes detachable round and square corner faceplates along with a round corner strike, supporting varied door frame conditions without requiring additional trim hardware.
This lever is suited for residential entry door installations where a keyed exterior function is required. The Venetian Bronze finish is appropriate for exterior and interior applications where a dark, oil-rubbed aesthetic is specified. The SmartKey feature allows the lock to be rekeyed on-site to match existing key codes or new key blanks, reducing the need for a locksmith during rekeying operations. This package is supplied as a quantity of 4 units per pack under key code K4, which is useful for multi-unit residential projects or property management applications where keyed-alike functionality is required across multiple doors.
Key Features
- SmartKey rekeying technology allows on-site rekeying without cylinder removal
- 6-way adjustable steel latch fits 2-3/8 inch and 2-3/4 inch backsets
- Accepts 7/8 inch and 1 inch drive-in configurations
- Includes detachable round and square corner faceplates for flexible door prep
- Round corner strike included
- Venetian Bronze finish with limited lifetime finish warranty
- Key code K4 supplied as a 4-unit pack for keyed-alike installations
Compatibility
Designed as an OEM-style keyed entry lever for standard residential door preparations accepting 2-3/8 inch or 2-3/4 inch backset latches with round or square corner faceplate openings.
Installation Notes
Installation is typically performed by a licensed locksmith or general contractor following door hardware manufacturer instructions and applicable building codes. Power down any associated access control or electronic systems before servicing the door assembly. Confirm door prep dimensions and backset measurement before installing the latch to ensure proper alignment with the strike plate. Do not overtighten mounting screws, as this can restrict lever operation or damage the door face.
Technical Specifications
- Finish: Venetian Bronze
- Latch Material: Steel
- Latch Adjustability: 6-way adjustable
- Backset Compatibility: 2-3/8 inches and 2-3/4 inches
- Drive-In Options: 7/8 inches and 1 inch
- Faceplate Type: Detachable round and square corner
- Strike Included: Round corner strike
- Key Code: K4
- Package Quantity: 4 units
- Unit of Measure: EA
- Weight: 10.5 pounds
- Mechanical Warranty: Limited Lifetime
- Finish Warranty: Limited Lifetime
Standard Information
- Brand: KWIKSET
- Manufacturer Part Number: 740TNL 11P SMT CP K4
