Description

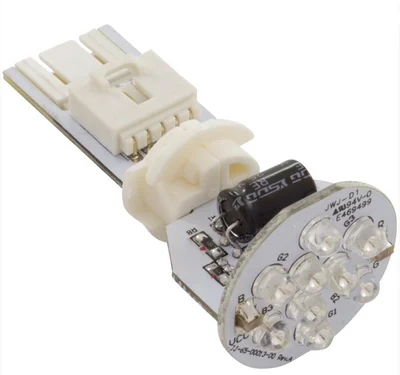

LED ColorChoice 9-LED Light Bulb LSL9-S2-LC operates at 12 volts a/c and 1.8 watts.
Light
This deluxe ColorChoice Bulb features 10 light patterns including:
| Manufacturer | J & J Electronics |
| Model | ColorChoice |
| Light Assembly Part Type | Bulb |
| Bulb Type | LED |
| Color | Multiple |
| Voltage | 12vac, 12vdc |
| Wattage | 1.8w |
This LED bulb type used in Dynasty Spas and other brand hot tubs. LSL9-deluxe bulb.
Replaces Dynasty Spa bulb 14919 LED, SPYDER, 9 LEDSLAVE LIGHT, 2012
Color Choice LED slave bulb with 9 LEDs operates at 12 volts.
LED deluxe 10 function bulb – Lighting Mode Sequence• White• Spectrum Slow Dance – slow fades cyclingthrough the color spectrum• Sunburst – yellow and orange glow• Blue• Red• Green• Magenta – pink, blue, red glow• Tidal Fade – slow fade through shades of blueand green• Afterburner Fade – slow fade through shades ofred, orange, yellow, pink, purple• Color Burst – strobe effect change through thecolor spectrum
Choosing Lighting ModesThe ColorGlo Multi-Color Spa Light comes pre-programmed with 10 exciting lighting modes.• To advance to the next lighting mode, switch the unit off and then on again within five seconds• To resume a lighting mode, leave the unit switched off to store the last lighting mode displayed in memory.That same lighting mode will display the next time the unit is switched on.
LED Life RatingLight Emitting Diodes (LEDs) generate the illumination of the ColorGlo Multi-Color Spa Lights. Thepredicted source life of the LEDs is rated at 100,000 elapsed time hours, or 11 years of continuous use,under normal operating conditions.
The following are considered normal operating conditions for this multi-color spa light:• Temperature range of -4° F to 104° F (-20° C to 40° C)• Humidity range of 0% – 95%, non-condensing
Installation of LED light bulb – Electrical Service WarningSafety precautions – Do not attempt to service the electronic components yourself. Non-expert handling may cause injury to the user and/or damage the unit. Any opening, altering or tampering with this product will void the manufacturer’s warranty. • Do not submerge this unit in water or allow it to get wet. Keep the unit dry at all times. • Do not allow this unit to freeze. • Always handle this unit cautiously, being careful to never drop it. Follow manufacturer’s instructions. Always disconnect power to the spa light at the circuit breaker before servicing the light. Failure to do so could result in death or serious injury to the installer, spa users or others due to electrical shock.
This part may be part of a larger lighting installation:
Related light parts
Also replaces LA Spas LT-10030 , Dynasty Spa light bulb 12025 and Vita Spa LED bulbs.
