Description

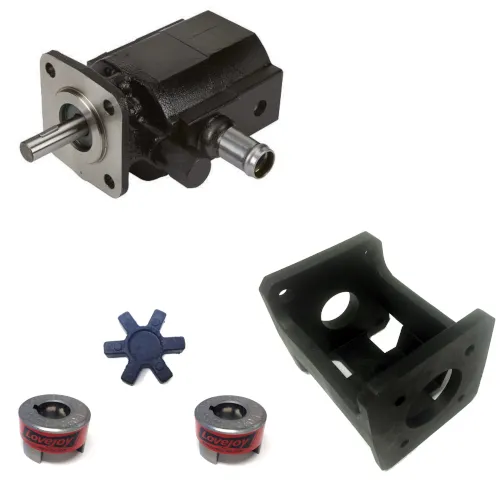

This two-stage pump kit comes with a 11 gpm pump, 1/2″” and 3/4″” lovejoy, spidergear and a 3030 mounting bracket.
11 GPM Two Stage Gear Pump w/ 1″” Pipe Inlet Porting
This product is a Hi-Lo cast iron hydraulic gear pump with max pressures of 900 PSI for the low pressure and 3000 PSI for the high pressure pump. Typical applications are log splitters and presses, where alternating low and high pressures are required to move a cylinder.
Product Features:
6 HP11 GPM3000 PSI3600RPM4 Bolt Mounting1″” Barb Inlet Port1/2″” NPT Outlet PortClockwise Rotation1/2″” Shafts use the 404 Woodruff Key5/8″” Shafts use 3/16″”Recommended cylinder bore size is 4″”Shaft Diameter X Length is 1/2″” X 1-1/2″”
4 Bolt Pump Mounting Bracket for Two Stage Pumps
Honda Pump Adapter – Bell Housing
Fits 11, 13.6, and 16 GPM two stage pumps
Product Specifications:
4.5″” L bracket3 5/8″” bolt circlefiberglass/nylon or aluminum materialfits Haldex Models 1012, 1053, and 1056for use with 5.5 HP Honda Engines
1/2″” Lovejoy Jaw Coupling Hub With Keyway
Half Inch Coupling Hub Specifications:
1/2″” Bore1/8″” W X 1/16″” D Keyway194 inch lbs Torque11.16 HP @ 3600 RPM 2.11″” Outside Diameter
3/4″” Lovejoy Jaw Coupling Hub With Keyway
Specifications:
3/4″” Bore3/16″” W X 13/32″” D Keyway194 inch lbs Torque11.16 HP @ 3600 RPM 2.11″” Outside Diameter
Hydraulic Spider
For use with up to 16 HP EnginesUrethane compositionSolid center spiders are most commonFits L-090 and L-095 Series Lovejoy Couplers
Product part numbers:
APHL11, 3030, SP1, L095E AND L095C.
