Description

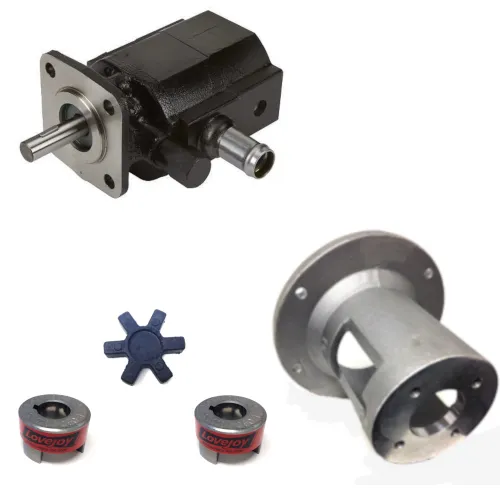

This set comes with a 16 GPM logsplitter pump, 1/2″” and 1″” lovejoy, spidergear and a 3032 mounting bracket.
16 GPM Hydraulic Two-Stage Gear Pump
This product is a Hi-Lo cast iron hydraulic gear pump with max pressures of 900 PSI for the low pressure and 3000 PSI for the high pressure pump. Typical applications are log splitters and presses, where alternating low and high pressures are required to move a cylinder.
Product Features:
8 HP16 GPM3000 PSI3600 RPM4 Bolt Mounting1″” Barb Inlet Port1/2″” NPT Outlet PortClockwise Rotation1/2″” Shafts use the 404 Woodruff KeyRecommended cylinder bore size is 4″”
Hydraulic Pump Mounting Bracket, 3032
Specifications:
5 5/8″” bracket length6 1/2″” bolt circle
Fits:
8, 10, and 11 HP Honda Engines1012, 1053, and 1056 Haldex Pumps7 and 8 HP Briggs STD or IC/IP12, 14, 16, and 18 HP Tecumseh6 1/2, 7 1/2, 8 and 11 HP Robin Industrial
1/2″” Lovejoy Jaw Coupling Hub With Keyway
Half Inch Coupling Hub Specifications:
1/2″” Bore1/8″” W X 1/16″” D Keyway194 inch lbs Torque11.16 HP @ 3600 RPM 2.11″” Outside Diameter
1″ Lovejoy Jaw Coupling Hub With Keyway
Specifications:
1″” Bore1/4″” W X 1/8″” D Keyway194 inch lbs Torque11.16 HP @ 3600 RPM 2.11″” Outside Diameter
Hydraulic Spider
For use with up to 16 HP EnginesUrethane compositionSolid center spiders are most commonFits L-090 and L-095 Series Lovejoy Couplers
Product part numbers:
APHL16, 3032, SP1, L095E AND L095.
