Description

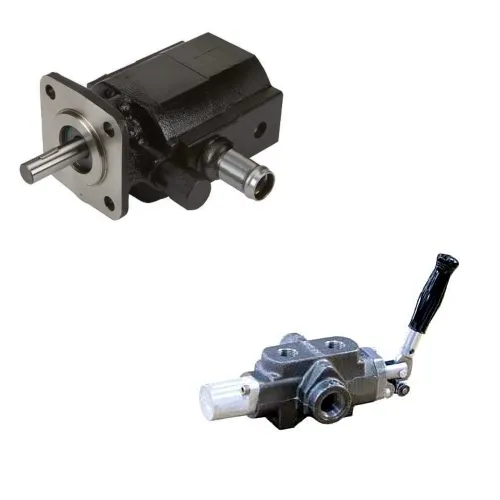

8 GPM Two Stage Hydraulic Gear Pump
This product is a Hi-Lo cast iron hydraulic gear pump with max pressures of 900 PSI for the low pressure and 3000 PSI for the high pressure pump. Typical applications are log splitters and presses, where alternating low and high pressures are required to move a cylinder.
Product Features:
8 GPM3000 PSI Hi Pressure400/900 Lo Pressure3600 RPM4 Bolt Mounting3/4″” NPT Inlet Port1/2″” NPT Outlet PortClockwise Rotation1/2″” Shafts use the 404 Woodruff Key
Recommended cylinder bore size is 3.5″”
Energy Log Splitter Valve
Product Specifications:
Single Spool Directional Control Valve3-Position, 4-Way0-20 GPM2500 PSI Working PressureHandle Style ActuatorSpring CenteredDetent With Hydraulic Kickout From The Retract Position1/2″” NPTF Work Ports3/4″” Inlet and Outlet Ports
Product Part Numbers:
APHL8, 0C000908
