Description

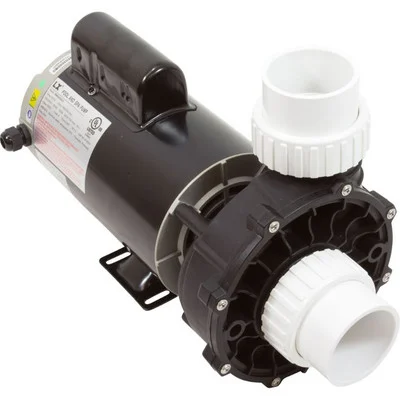

56WUA500-II 5HP 230v spa pump with a larger suction and discharge for 2 1/2 inch inner diameter plumbing is a 5HP, 230v pump.
56WUA500-II 2-speed, 5HP spa pump.Replaces Aquaflo XP2e 5HP 56 frame pump that has the 2 1/2 inch intake and 2 1/2 inch discharge.Dimensions: 17-1/16″L x 8-11/16″W x 9-1/2″H
56WUA500-II 2-speed 5HP spa pump specs:
| Pump Model | 56WUA |
| Speed | 2 Speed (2-Spd) |
| Motor Voltage | 230v |
| Drain Plug Location | 3,6,9 o`clock |
| Suction Style | Center |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Pipe Size | 2-1/2″ |
| Discharge Style | Side |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 2-1/2″ |
| Horsepower | 5.0hp |
| Motor Frame | 56 Frame Thru-Bolt |
| Motor Amperage/Wattage | 15.0A/5.0A |
Need a barb fitting adapter that fits in place of a freeze plug on the wet end? See BARB14X38.
Replacing a Coast Spa pump or other pump that connects to 2 inch plumbing, see 2x reducers 415-6010
