Description

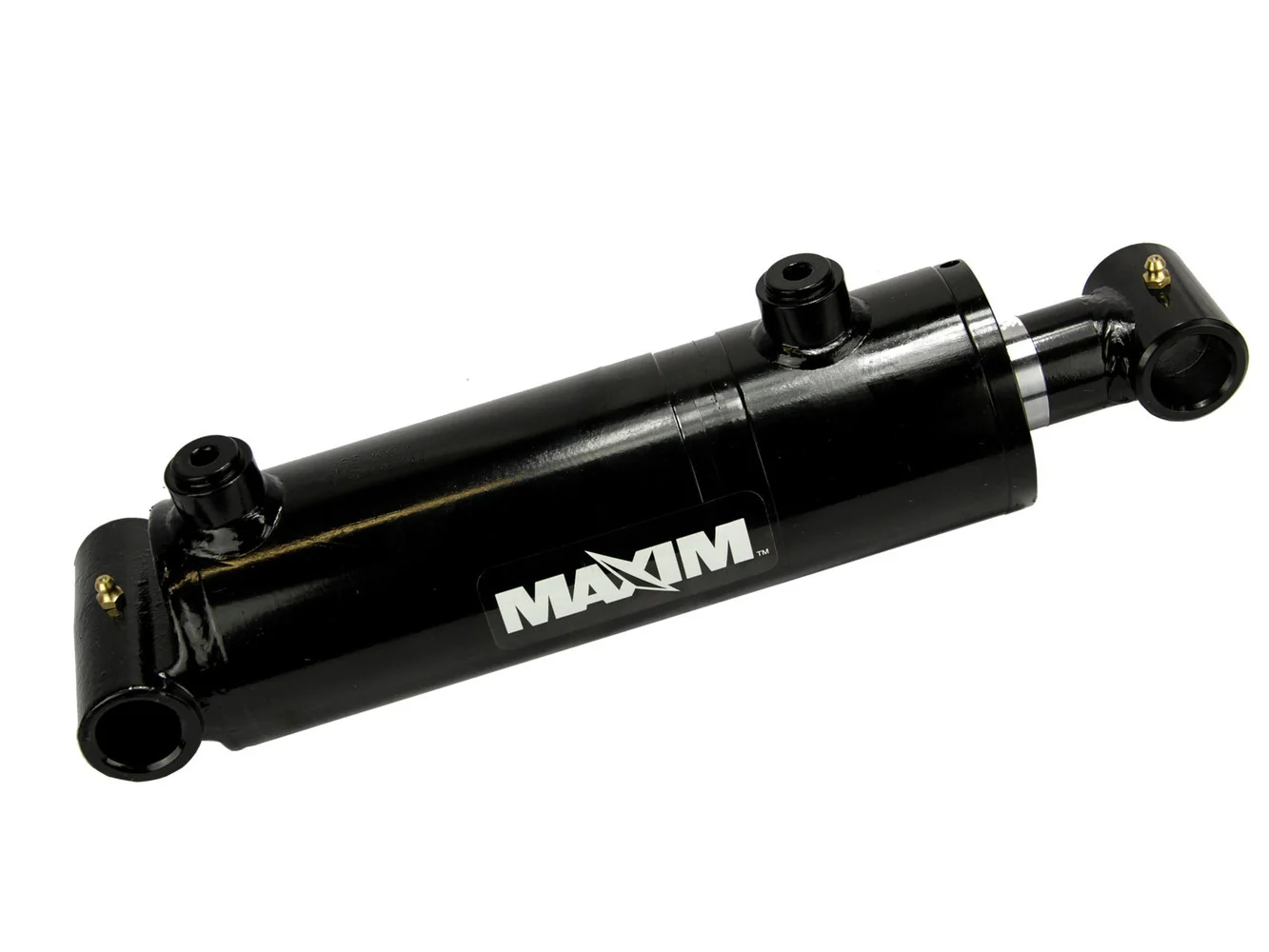

This MAXIM™ WT 3000 PSI welded cylinder is crosstube mounted, and exceeds the highest standards. These cylinders are designed for demanding applications and are built to ensure maximum reliability and performance. Painted black.
Specifications:
Bore: 5 in
Stroke: 72 in
PSI: 3000
Retracted: 83 in
Pin Diameter: 1.5 in
Rod Diameter: 2.5 in
Extended: 155 in
Column Load: 21127 lbs
Port Size: 3/4 NPT
Brand: Maxim
Due to size and weight, this item ships via freight truck. After you place your order, we will contact you with a freight quote (or you can contact us ahead of time).
