Description

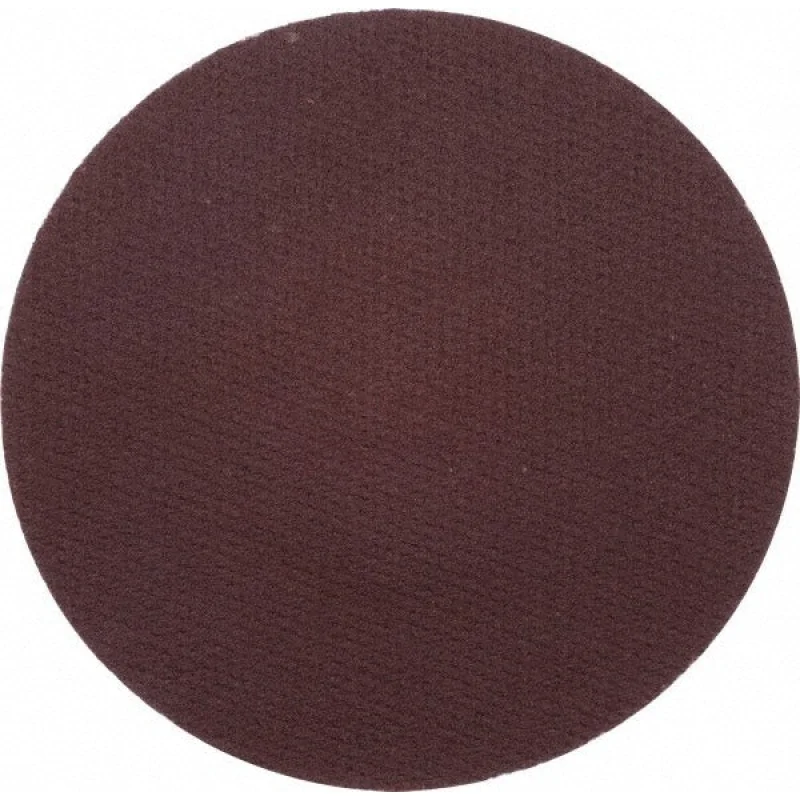

The MERIT ABRASIVES 69957399784 is a 2-inch diameter quick-change coated abrasive disc designed for use with Power-Lock Type 1 attachment systems on handheld disc sanders. Rated at 320 grit and classified as extra fine grade, this aluminum oxide disc is backed by a Y-weight 2-ply polyester backing that is rigid and built for durability. The coated construction provides additional service life and a faster cut rate compared to standard cloth-backed alternatives. It is intended for professional use in metal fabrication, finishing, and surface preparation applications where consistent, controlled material removal is required.
This disc is suited for use on 300 series stainless steel, brass, bronze, hard carbon steels, soft carbon steels, and titanium. Its extra fine 320-grit rating makes it appropriate for deburring, cleaning, and detailing operations rather than aggressive stock removal. It attaches via a Type P system and is compatible with handheld disc sanders. The disc is sold individually but carries a minimum order quantity of 100 units, making it well suited for shop environments that maintain high-volume abrasive inventory. Commercial metal fabrication shops and maintenance facilities are the primary users of this product.
Key Features
- 320 grit extra fine aluminum oxide abrasive for controlled finishing and deburring
- Y-weight 2-ply polyester backing for rigidity and extended disc life
- Power-Lock Type 1 quick-change attachment for fast disc swaps on handheld sanders
- Rated to 30,000 RPM maximum operating speed
- Compatible with 300 series stainless, brass, bronze, hard and soft carbon steels, and titanium
- Coated construction delivers faster cut rate compared to standard abrasive discs
Compatibility
Designed for use with handheld disc sanders equipped with a Power-Lock Type 1 quick-change attachment system. Suitable for material applications including 300 Series Stainless, Brass, Bronze, Hard Carbon Steels, Soft Carbon Steels, and Titanium.
Installation Notes
Installation and disc changes should be performed by qualified personnel familiar with abrasive tooling. Always power down and disconnect the sander before mounting or removing the disc. Verify that the tool’s rated RPM does not exceed the disc’s maximum RPM of 30,000 before operation. Inspect the disc for damage before each use and follow applicable ANSI B7.1 safety standards for abrasive wheel use.
Technical Specifications
- Disc Diameter: 2 inches
- Grit: 320
- Grade: Extra Fine
- Abrasive Material: Aluminum Oxide
- Abrasive Type: Coated
- Backing Material: Polyester
- Backing Weight: Y-weight
- Flexibility: Rigid
- Maximum RPM: 30,000
- Attaching System: Type P (Power-Lock Type 1)
- Disc Color: Brown
- Button Color: Black
- Series: R766
- Machine Compatibility: Handheld Disc Sander
- Package Quantity: 1
- Minimum Order Quantity: 100
- Weight: 0.001 pounds
Standard Information
- Brand: MERIT ABRASIVES
- Manufacturer Part Number: 69957399784
