Description
DISCONTINUED in gray, see same jet in other colors:
100187 heron blue (same size/closest to gray)
100181 blue
100185 white
Original gray Nordic Hot Tub replacement 5 1/4 inch Whirly jet insert – VSR style model 100189.
Gray scallop style jet insert with rotating center nozzle.sa
This is the large jet found in select model Crown II and other model hot tubs.
Diameter measurement is just over 5 inches across the front of this jet insert.
Tech Tip:
This replacement jet insert VSR style needs an adapter ring. Old style jets had tabs that would break off. You can find the adapter ring here: 36-5806WHT
This jet replacement has an adapter ring that first needs to be glued in, so you will need to lower the water level and glue in the adapter ring.
First note the location of Slot A and Slot B. The Tab A or tab on the adapter ring must slide into Slot A on the jet insert.
The ring slides in with tab facing up with glue applied to outside of ring.
When installing the jet face (after adapter ring has been glued into place and PVC glue is dry), tab B must line up with Slot B. Slide the face into the jet body and twist counterclockwise to lock.Note: Glue should be allowed to completely dry before refilling or installing the jet face.

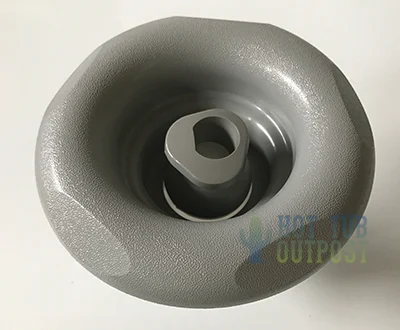

Large Gray VSR Jet Nordic Hot Tubs and adapter ring included in this jet replacement kit.
Side view of this original replacement jet:
Your older style jet may have numbers 36-5760 on it, but that has been replaced by this VSR jet.
Also available in black – see 100186.
