Description

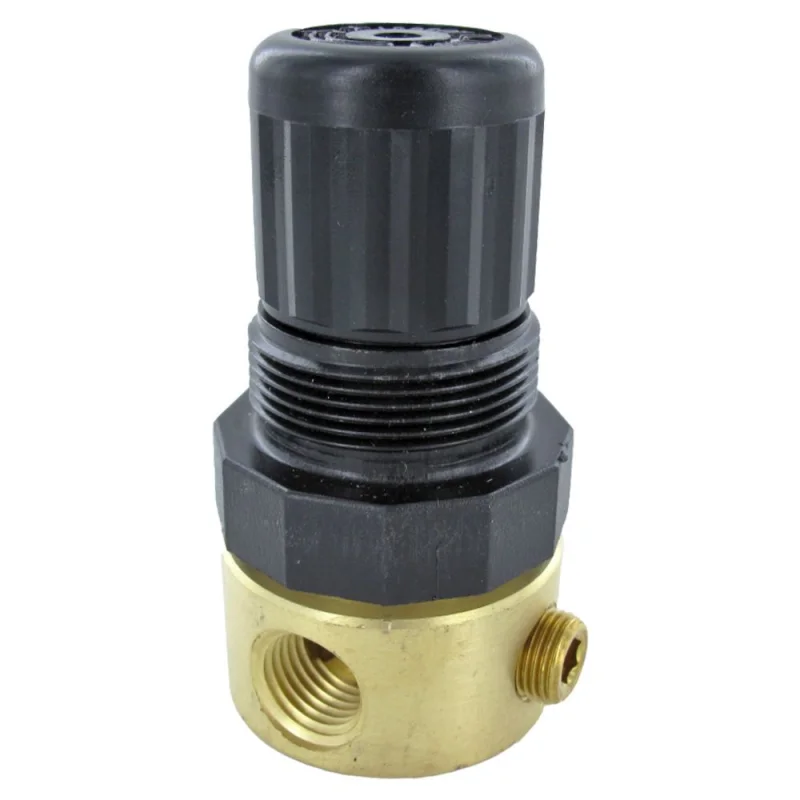

The Norgren R06-221-NNKA water and air pressure regulator features a compact corrosion resistant design. The R06-221-NNKA has a snap action pressure adjusting knob that locks the pressure setting when the knob is pushed in. This regulator is suitable for use on air or water service.
Specifications:
- Compact design
- Corrosion resistant construction
- Brass body with plastic bonnet
- Non-relieving model; designed for water and air service
- For industrial applications only; not designed for use with deionized or potable water
- Port size: 1/4″ FPT
- Max inlet pressure: 400 psig (28 Bar)
- Max outlet pressure: 100 psig (6.9 Bar)
- Outlet pressure adjustable from 5-100 psig (0.3-6.9 Bar)
- Max flow rate (water): 1.3 gpm
- Max flow rate (air): 12.0 SCFM
NOTE:Air supply must be dry enough to avoid ice formation at temperatures below 35F (2C).
