Description

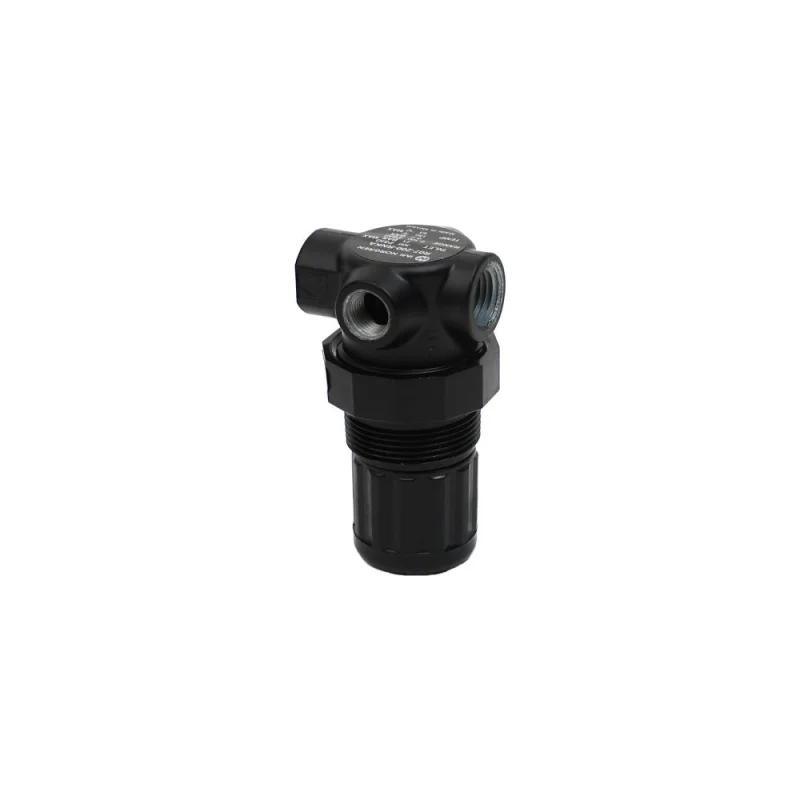

The NorgrenRO7200RGKA air pressure regulator features a compact corrosion resistant design. The RO7200RGKA has a snap action pressure adjusting knob that locks the pressure setting when the knob is pushed in. This regulator is suitable for use on compressed air and neutral gases.
Specifications:
- Compact design
- Corrosion resistant construction
- Zinc body with plastic bonnet
- Relieving model; allows reduction of outlet pressure even when system is dead-ended
- Includes pressure gauge
- For industrial applications
- Port size: 1/4″ FPT
- Max inlet pressure: 300 psig (28 Bar)
- Max outlet pressure: 100 psig (7 Bar)
- Outlet pressure adjustable from 5-100 psig (0.3-7 Bar)
- Max flow rate (air): 15.0 scfm
NOTE:Air supply must be dry enough to avoid ice formation at temperatures below 35F (2C)
