Description
Technical Overview

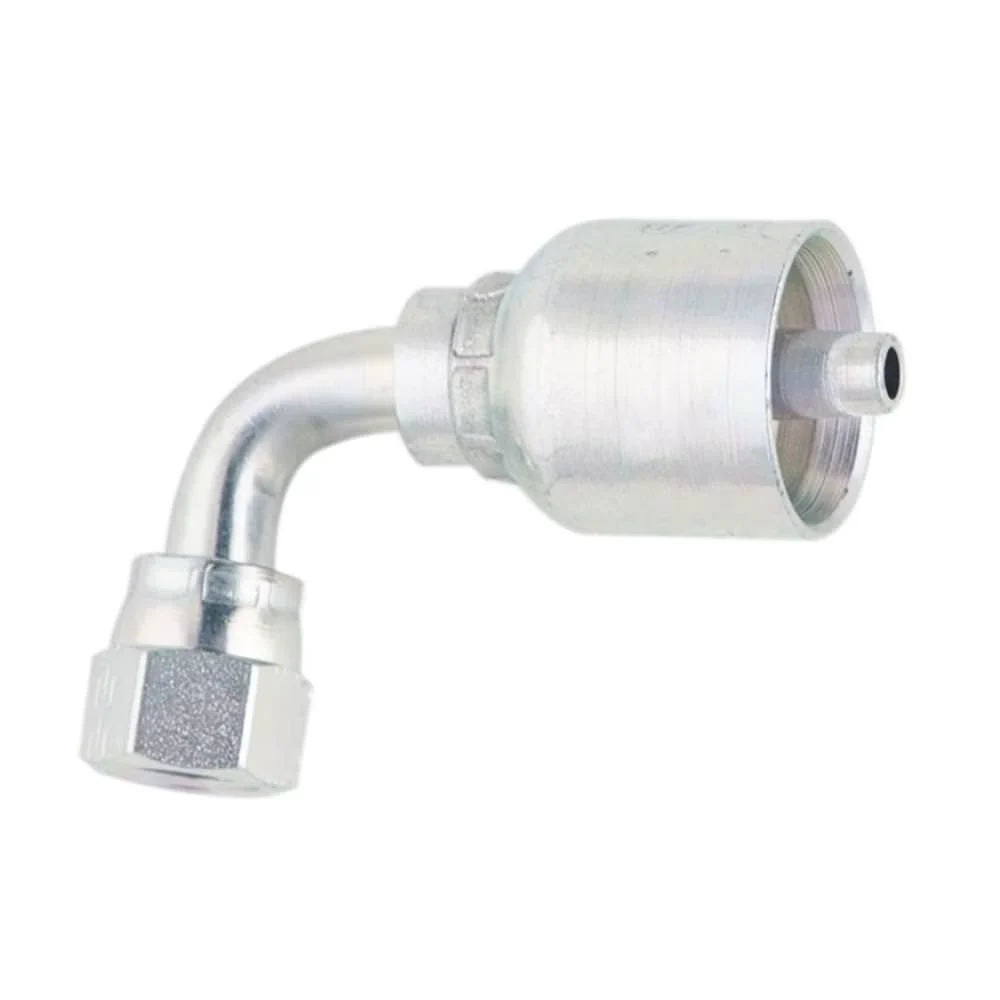

The Parker 13943-16-12 is a high-quality fitting from the renowned 43 Series, designed for use in permanent crimp applications. This female JIC 37° swivel elbow fitting offers a 90° angle and a short drop, making it ideal for tight spaces where a secure connection is essential. Engineered for easy assembly with Parker’s Parkrimp crimpers, the 43 Series eliminates the need to remove the hose’s outer cover for assembly, preventing premature hose failure.
Specifications
- Part Number: 13943-16-12
- Material: Steel
- Fitting Type: Female JIC 37° Swivel Elbow
- Connection Angle: 90°
- Drop Length: Short Drop
- Weight: 0.73 lbs
Features and Benefits
- No-skive assembly process for easier installation
- Chromium-6 free plating for enhanced corrosion resistance
- Compatible with Parker hydraulic braided, light spiral, specialty, suction, and return hoses
- Reliable performance in hydraulic systems
- Manufactured in USA under strict quality guidelines
Applications
- Hydraulic machinery and equipment
- Construction and heavy-duty vehicles
- Agricultural machinery
- Industrial fluid transfer applications
- Oil and gas sector applications
Quality and Certification
This fitting is manufactured in accordance with Parker’s rigorous quality standards and adheres to industry specifications for hydraulic applications. Each unit is subjected to thorough testing to ensure reliability and long-lasting performance in demanding operational environments.
For technical support and assistance, contact our product specialists at (800) 823-4937
