Description
Technical Overview

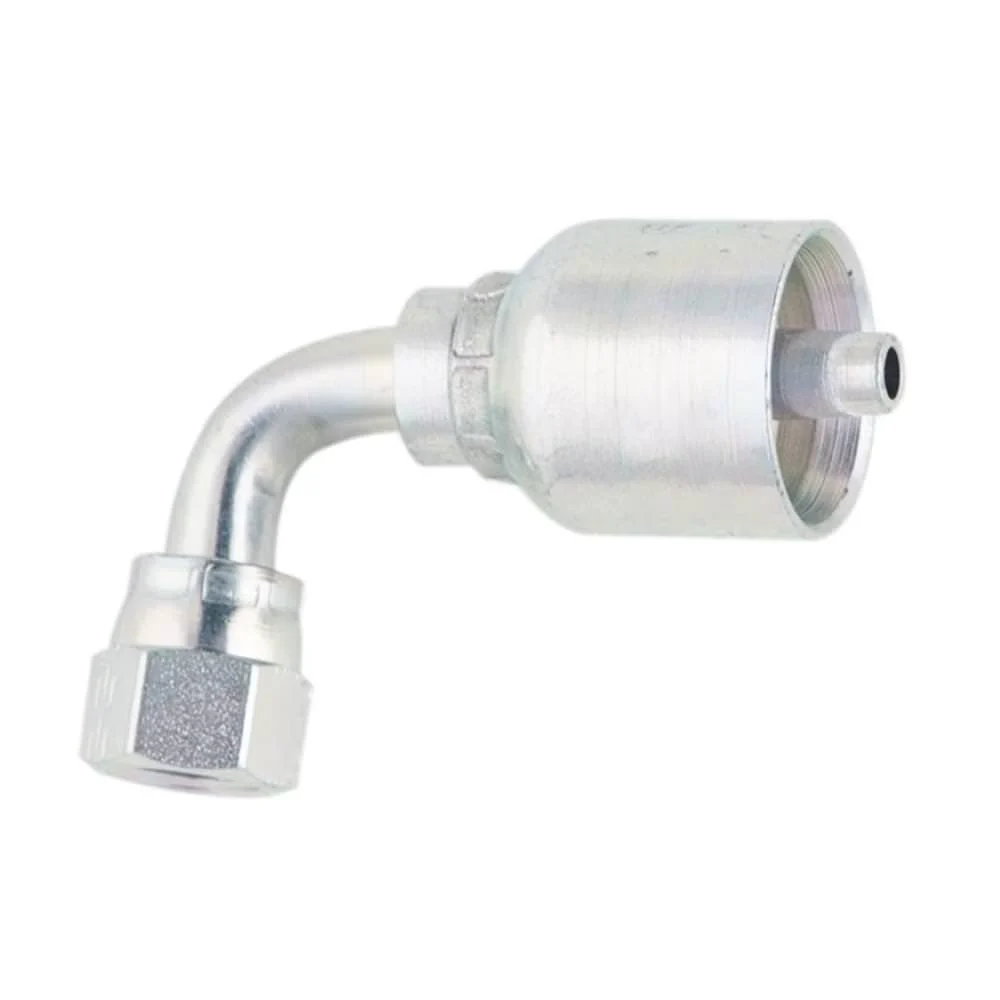

The Parker 13943-6-8 is a high-quality fitting from the 43 Series that features a female JIC 37° swivel design. This fitting is engineered for fast assembly with Parker’s range of Parkrimp crimpers, ensuring a reliable and robust connection in hydraulic systems.
One of the standout features of the 43 Series is its No-Skive assembly process, which eliminates the need to remove the outer cover of the hose. This innovation not only speeds up installation but also prevents potential hose failure that can result from improper skiving. The fitting also boasts a Chromium-6 free plating, making it an environmentally friendly choice for various applications.
Specifications
- Part Number: 13943-6-8
- Connection Type: Female JIC 37° – Swivel
- Angle: 90° Elbow
- Size: 3/8 Inch
- Material: Steel
- Weight: 0.28 lbs
Features and Benefits
- No-Skive assembly reduces installation time and potential for hose damage
- Female JIC 37° swivel fitting ensures flexibility and ease in hydraulic applications
- Made from durable and corrosion-resistant materials
- Compliant with Parker’s stringent quality standards
- Manufactured in USA for quality assurance
Applications
- Hydraulic systems in industrial settings
- Mobile equipment applications
- Construction machinery
- Agricultural equipment
- Various other pneumatic and fluid conveyance duties
Quality and Certification
The Parker 43 Series fittings are manufactured adhering to strict quality standards, ensuring they meet or exceed industry specifications. These fittings undergo rigorous testing to guarantee their performance and longevity in demanding applications.
