Description
Technical Overview

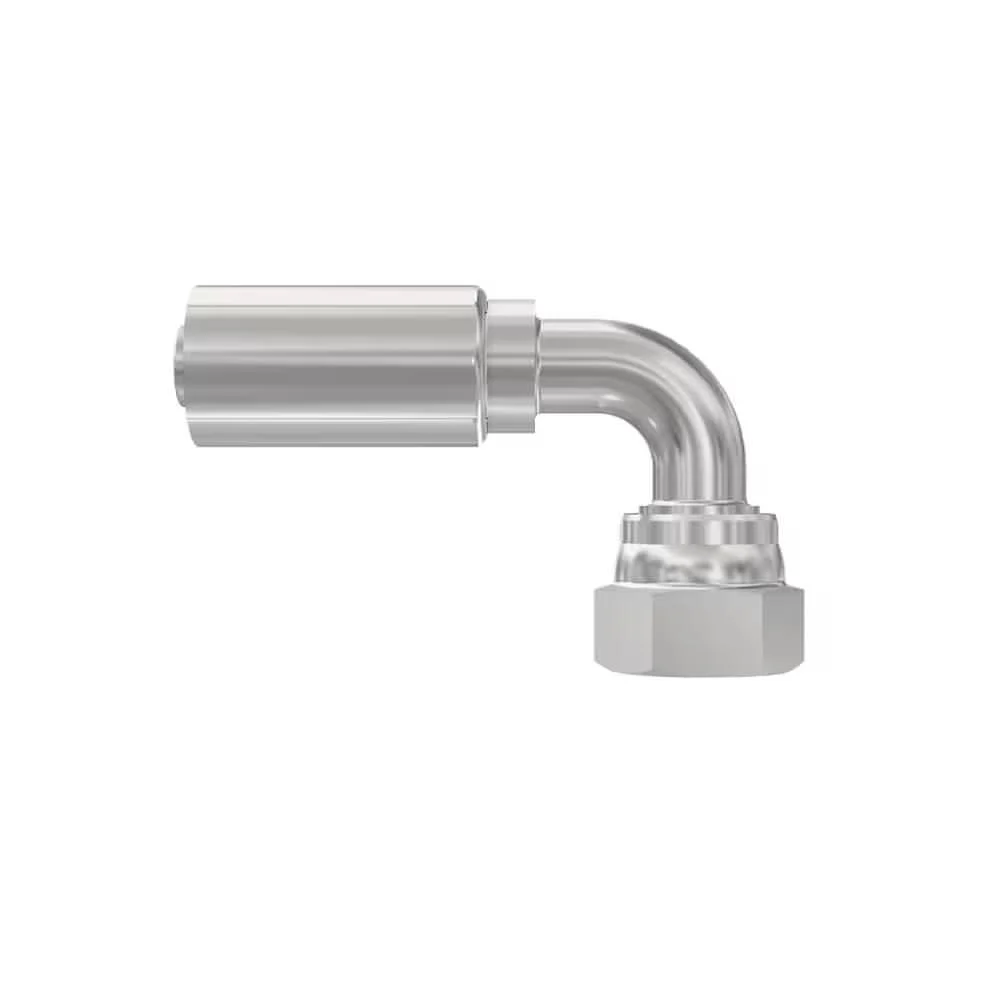

The Parker 13977-24-24 is a high-quality hydraulic fitting from the renowned 73 Series, designed for seamless adaptation in hydraulic systems. This particular fitting features a 1-inch female JIC 37° swivel and a 90° elbow configuration, providing the flexibility to navigate complex plumbing layouts without compromising on fluid flow integrity.
Parker’s no-skive assembly philosophy allows for quick fittings integration with their Parkrimp crimpers, significantly reducing installation time. This eliminates the need for the outer hose cover removal, drastically lowering the risk of hose failure due to improper skiving.
Specifications
- Part Number: 13977-24-24
- Material: Steel with zinc dichromate plating
- Connection Type: Female JIC 37° swivel
- Elbow Angle: 90°
- Hose Compatibility: 731 Hose – Parker Hydraulic Spiral Hose
- Weight: 4.32 lbs
Features and Benefits
- Durable steel construction for enhanced longevity
- Zinc dichromate plating for superior corrosion resistance
- No-skive assembly for faster installation without risk of hose damage
- Applications in various hydraulic systems, ensuring reliability
- Made in USA under stringent quality control standards
Applications
- Hydraulic machinery and equipment
- Construction and agricultural applications requiring 90° hose routing
- Compatible with various hydraulic applications needing dependable connection
Quality and Certification
The Parker 13977-24-24 fitting is manufactured to meet Parker’s strict quality standards, ensuring high performance and reliability in industrial applications. This fitting undergoes rigorous testing and quality assurances to meet or exceed applicable industry certifications.
Need assistance? Contact our product specialists at (800) 823-4937 for technical support and further inquiries.
