Technical Overview

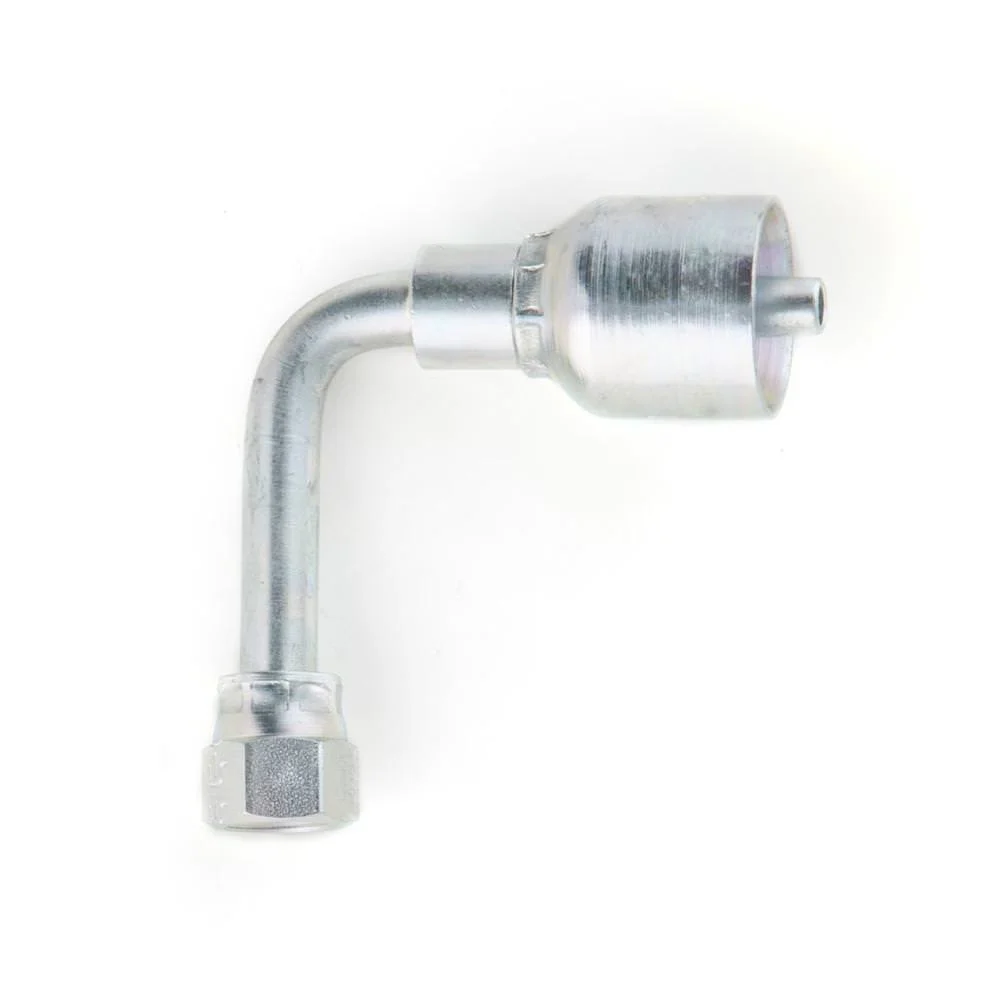

The Parker 14143-16-16 is a part of the highly regarded Parker 43 Series fittings. This premium quality hydraulic fitting features a 90° swivel elbow design and is engineered to provide a reliable connection in hydraulic systems. Constructed from robust steel, this fitting is perfect for applications where durability and strength are paramount.
The crimp style fitting allows for quick assembly using Parker’s Parkrimp crimpers, making installation both simple and efficient. The no-skive feature means there is no need to remove the outer cover of the hose, which prevents premature hose failure often caused by improper skiving. This feature enhances overall system reliability, ensuring optimal performance in demanding environments.
Specifications
- Part Number: 14143-16-16
- Fitting Series: 43 Series
- Connection Type: Female JIC 37° Swivel
- Configuration: 90° Elbow
- Hose Compatibility: Parker Hydraulic Braided, Light Spiral, Specialty, Suction and Return Hoses
- Material: Steel with Chromium-6 free plating
- Weight: 1.33 lbs
Features and Benefits
- High-quality construction from steel for enhanced durability
- 90° swivel design allows for easy installation and flexible routing
- No-skive technology eliminates the risk of hose damage during assembly
- Chromium-6 free plating ensures environmental safety
- Made in the USA under strict quality standards
Applications
- Hydraulic systems requiring a reliable and durable fitting
- Construction and agriculture machinery
- Marine and automotive applications
- Industrial machinery and equipment
- Pneumatic systems with high-pressure demands
Quality and Certification
Designed and manufactured in accordance with Parker’s rigorous quality assurance processes, the 14143-16-16 fitting meets industry standards for performance and safety. Each component is subjected to thorough testing, ensuring reliability and long service life in critical hydraulic applications.
For technical support and assistance, contact our product specialists at (800) 823-4937
