Technical Overview

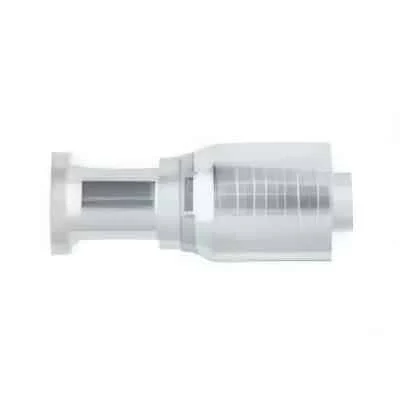

The Parker 77 Series Flange Head Fitting, model number 14A77-24-24, is designed for quick assembly with the Parkrimp family of crimpers. This permanent (crimp) style fitting allows for a no-skive hose assembly, eliminating the need for outer cover removal. This innovative design helps prevent premature hose failure often associated with skiving errors. Crafted for exceptional performance, the 14A77-24-24 is compatible with Parker’s hydraulic spiral hose, ensuring a reliable connection in demanding applications.
Specifications
- Part Number: 14A77-24-24
- Material: Steel with zinc dichromate plating
- Pressure Rating: 5000 PSI
- Connection Type: SAE Code 61 Flange Head – Straight
- Hose Compatibility: Parker Hydraulic Spiral Hose
- Weight: 2.62 lbs
- Size: 1 1/2 Inch
Features and Benefits
- Quick and easy assembly with Parkrimp crimpers
- No-skive design ensures a secure connection without hose damage
- Durable zinc dichromate plating for enhanced corrosion resistance
- High-pressure rated for use in rigorous hydraulic systems
- Made in USA under strict quality control standards
Applications
- Industrial hydraulic systems
- Agricultural machinery
- Construction equipment
- Oil and gas applications
- Any application requiring reliable high-pressure connections
Quality and Certification
The Parker 77 Series Fittings adhere to Parker’s stringent quality standards and are designed to perform reliably in high-pressure hydraulic systems. Manufactured with care, each fitting undergoes rigorous testing to confirm compliance with industry requirements.
For technical support and assistance, contact our product specialists at (800) 823-4937
