Description
Technical Overview

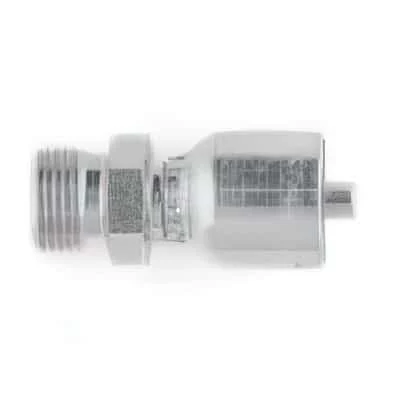

The Parker 1D243-12-6 43 Series Male BSP Parallel Pipe Fitting is engineered to provide a reliable and robust solution for high-pressure hydraulic applications. Designed for use with Parkrimp crimpers, this fitting allows for quick assembly without the need to remove the outer cover of the hose, thus preventing premature hose failure. The 43 Series Fittings feature a 60° cone design for optimal sealing and leak resistance when connected.
Specifications
- Part Number: 1D243-12-6
- Series: 43 Series
- Type: Male BSP Parallel Pipe
- Connection Angle: 60° Cone
- Material: Steel
- Weight: 0.215 lbs
Features and Benefits
- No-Skive assembly process eliminates the risk of premature hose failure.
- Chromium-6 free plating ensures compliance with environmental standards.
- Compatible with Parker Hydraulic Braided, Light Spiral, Specialty, Suction, and Return Hoses.
- Allows for quick and easy installation in various hydraulic applications.
- Made in USA with Parker’s commitment to quality.
Applications
- Industrial hydraulic systems
- Construction machinery
- Agricultural equipment
- Marine applications
- General fluid conveyance
Quality and Certification
The Parker 43 Series Fittings are manufactured under strict quality control standards, ensuring durability and reliability in demanding environments. Parker’s fittings comply with industry certification requirements, guaranteeing performance in critical fluid power applications.
For technical support and assistance, contact our product specialists at (800) 823-4937
