Description
Technical Overview

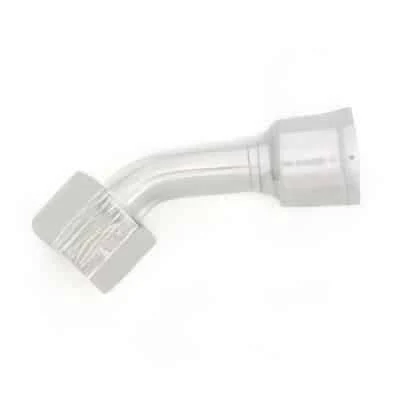

The Parker 1J726-8-8 is a part of the renowned 26 Series fittings line, designed for durable and reliable performance in industrial hydraulic systems. This permanent (crimp) style fitting allows for quick assembly using Parker’s family of crimpers, eliminating the need to remove the hose’s outer cover during assembly.
By avoiding the skiving process, the 26 Series fittings help prevent premature hose failure, ensuring a secure and effective connection. The fitting features a female Seal-Lok design and is configured with a swivel and 45° elbow for versatility in installation.
Specifications
- Part Number: 1J726-8-8
- Series: 26 Series
- Material: Steel with zinc dichromate plating
- Connection Type: Female Seal-Lok
- Elbow Angle: 45°
- Compatible Hoses: 201-261, 206, 213, 221FR, 225, 235, 244, 266, 285, 293, SS23CG
- Weight: 0.25 lbs
Features and Benefits
- High-quality steel construction with zinc dichromate plating for enhanced corrosion resistance
- Quick assembly with Parker crimpers, reducing installation time
- Prevents premature hose failure due to the no-skive design
- Swivel and elbow design provides flexibility for various applications
- Made in USA under strict quality control standards
Applications
- Industrial hydraulic systems
- Agricultural machinery
- Construction equipment
- Marine applications
- General fluid power applications
Quality and Certification
Parker’s 26 Series fittings, including the 1J726-8-8, are manufactured in compliance with exacting Parker quality standards. Each fitting meets or exceeds required industry specifications, ensuring exceptional reliability and long service life.
For technical support and assistance, contact our product specialists at (800) 823-4937.
