Description
Technical Overview

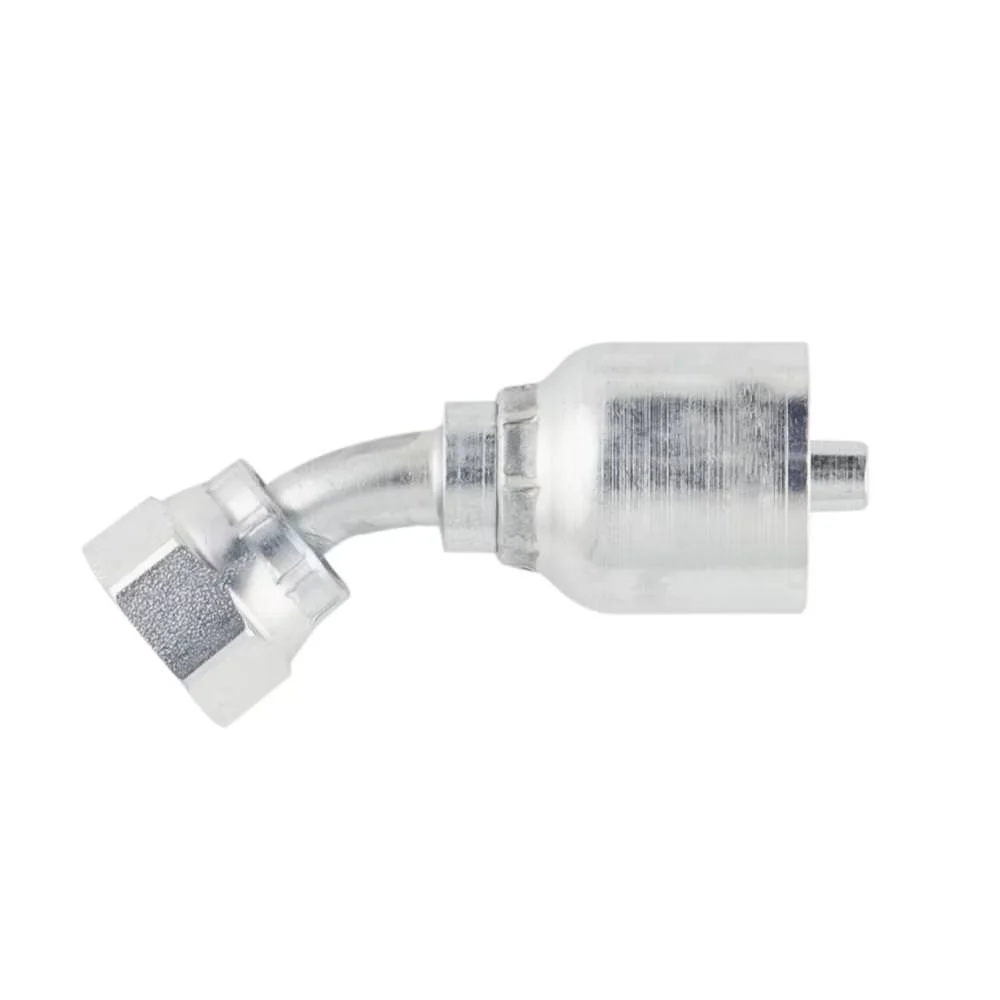

The Parker 1J743-12-10 is a premium 43 Series female Seal-Lok swivel fitting designed for easy and efficient assembly in hydraulic systems. This innovative design allows for quick connections without needing to remove the outer cover of the hose, known as a No-Skive assembly method. This feature significantly reduces the risk of premature hose failure caused by improper skiving.
Specifications
- Part Number: 1J743-12-10
- Material: Steel
- Type: Female Seal-Lok Swivel
- Angle: 45° Elbow
- Hose Connection Size: 3/4 Inch
- Plating: Chromium-6 free
- Weight: 0.58 lbs
Features and Benefits
- Quick and reliable assembly with Parker crimpers
- No-Skive technology minimizes hose damage
- Durable steel construction for long-lasting performance
- Chromium-6 free plating for enhanced environmental friendliness
- Excellent compatibility with Parker hydraulic braided, light spiral, specialty, suction, and return hoses
- Made in USA, ensuring high quality and reliability
Applications
- Hydraulic systems in industrial machinery
- Agricultural equipment
- Construction machinery
- Marine hydraulic applications
- Logistics and material handling systems
Quality and Certification
The Parker 1J743-12-10 fitting is manufactured in accordance with the highest industry standards, ensuring reliability in critical hydraulic applications. Each fitting undergoes rigorous testing to meet Parker’s stringent quality assurance protocols, guaranteeing superior performance and durability in demanding conditions.
For technical support and assistance, contact our product specialists at (800) 823-4937
