Description
Technical Overview

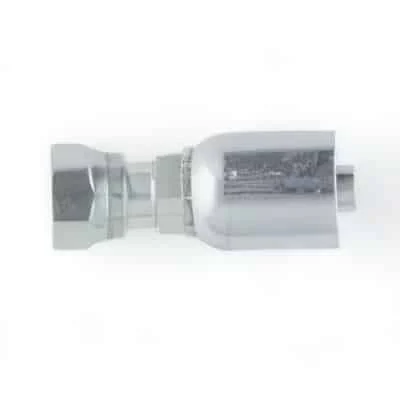

The Parker 1JS77-16-16 is a premium fitting from the 77 Series, designed for efficient hydraulic applications. This female Seal-Lok fitting boasts a swivel feature, which allows for easy alignment and prevents damage to the hose during installation. Its long and straight design facilitates convenient and robust connections in variable environments.
The crimp-style fitting permits quick assembly using Parker’s Parkrimp crimpers, eliminating the need for hose cover removal, thereby reducing the risk of premature hose failure due to improper skiving.
Specifications
- Part Number: 1JS77-16-16
- Series: 77 Series
- Material: Steel with Zinc Dichromate plating
- Weight: 1.21 lbs
- Connection Type: Female Seal-Lok Swivel Straight
- Hose Compatibility: 731 Hose – Parker Hydraulic Spiral Hose
Features and Benefits
- Robust construction for long-lasting performance in hydraulic systems
- Swivel design allows for flexible installation and prevents hose twisting
- Compatible with Parkrimp crimpers for quick and reliable assembly
- Zinc dichromate plating offers superior corrosion resistance
- Made in USA with strict quality control standards
Applications
- Industrial hydraulic systems
- Construction machinery
- Agricultural equipment
- Mobile hydraulic applications
- Machinery and equipment maintenance
Quality and Certification
Manufactured in accordance with Parker’s high-quality standards, the 1JS77-16-16 fitting meets or exceeds industry specifications, providing reliable performance in various demanding applications. Each fitting undergoes rigorous testing procedures to ensure safety and durability.
For technical support and assistance, contact our product specialists at (800) 823-4937
