Technical Overview

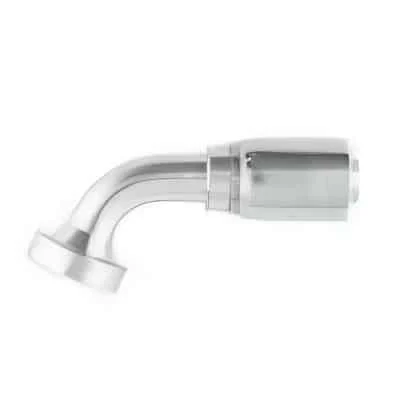

The Parker 1XF77-24-24 is a durable and reliable fitting from the Parker 77 Series, specifically designed for hydraulic applications. This permanent (crimp) style fitting allows for quick assembly with the family of Parkrimp crimpers, ensuring efficient handling in demanding environments. The 1 1/2-inch caterpillar® flange head 45° elbow facilitates smooth fluid flow and minimizes connection leakage, making it an ideal choice for various industrial applications.
Specifications
- Part Number: 1XF77-24-24
- Type: Flange Head – 45° Elbow
- Size: 1 1/2 Inch
- Material: Steel with Zinc Dichromate Plating
- Weight: 3.61 lbs
- Connection Method: Parkrimp crimping system
- Compatible Hose: Parker Hydraulic Spiral Hose
Features and Benefits
- Permanent crimp design for robust connections
- No-Skive technology eliminates the need for hose skiving
- Zinc dichromate plating for enhanced corrosion resistance
- Efficient assembly with Parkrimp crimpers saves time and reduces errors
- Made in USA under rigorous quality assurance standards
Applications
- Hydraulic systems in construction equipment
- Agriculture machinery fluid transfer
- Power steering applications
- Marine hydraulic applications
- General industrial fluid power systems
Quality and Certification
The Parker 77 Series fittings are manufactured following Parker’s strict quality standards, ensuring reliability and durability in high-pressure environments. Each fitting undergoes comprehensive testing for quality assurance, meeting industry certifications and compliance standards for hydraulic applications.
For technical support and assistance, contact our product specialists at (800) 823-4937
