Description
Technical Overview

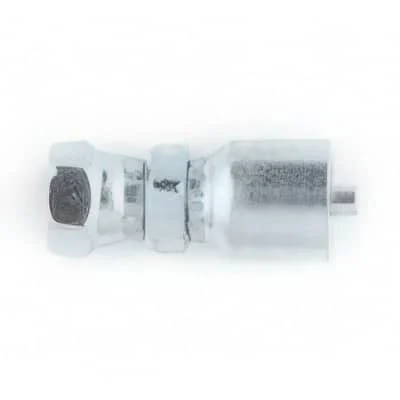

The Parker 43 Series Fittings, particularly the part number 1GU43-20-20, represent a premier solution for hydraulic connections, designed with the Parkrimp crimp-style mechanism that allows for swift and efficient assembly. These fittings enable users to connect No-Skive hoses without the need for removing the outer cover, significantly reducing the risk of premature hose failure associated with improper skiving.
Specifications
- Part Number: 1GU43-20-20
- Fitting Type: Crimp Fitting
- Size: 1 1/4 Inch
- Material: Steel
- Plating: Chromium-6 Free
- Weight: 1.501 lbs
Features and Benefits
- Quick assembly with Parkrimp crimpers without skiving the hose.
- Reduced risk of premature failure due to improper fitting assembly.
- Chromium-6 free plating ensures minimal environmental impact.
- High compatibility with Parker Hydraulic Braided, Light Spiral, Specialty, Suction, and Return Hoses.
- Manufactured in the USA under stringent quality standards for reliability.
Applications
- Hydraulic systems in industrial machinery
- Construction equipment
- Agricultural machinery
- Marine hydraulic applications
- Automotive hydraulic systems
Quality and Certification
Parker 43 Series fittings are manufactured to meet stringent Parker quality standards, ensuring exceptional performance and durability. They conform to various industry certifications, guaranteeing reliability in high-pressure hydraulic applications. Each fitting undergoes rigorous testing processes to ensure they meet the required specifications.
For technical support and assistance, contact our product specialists at (800) 823-4937.
