Description
Technical Overview

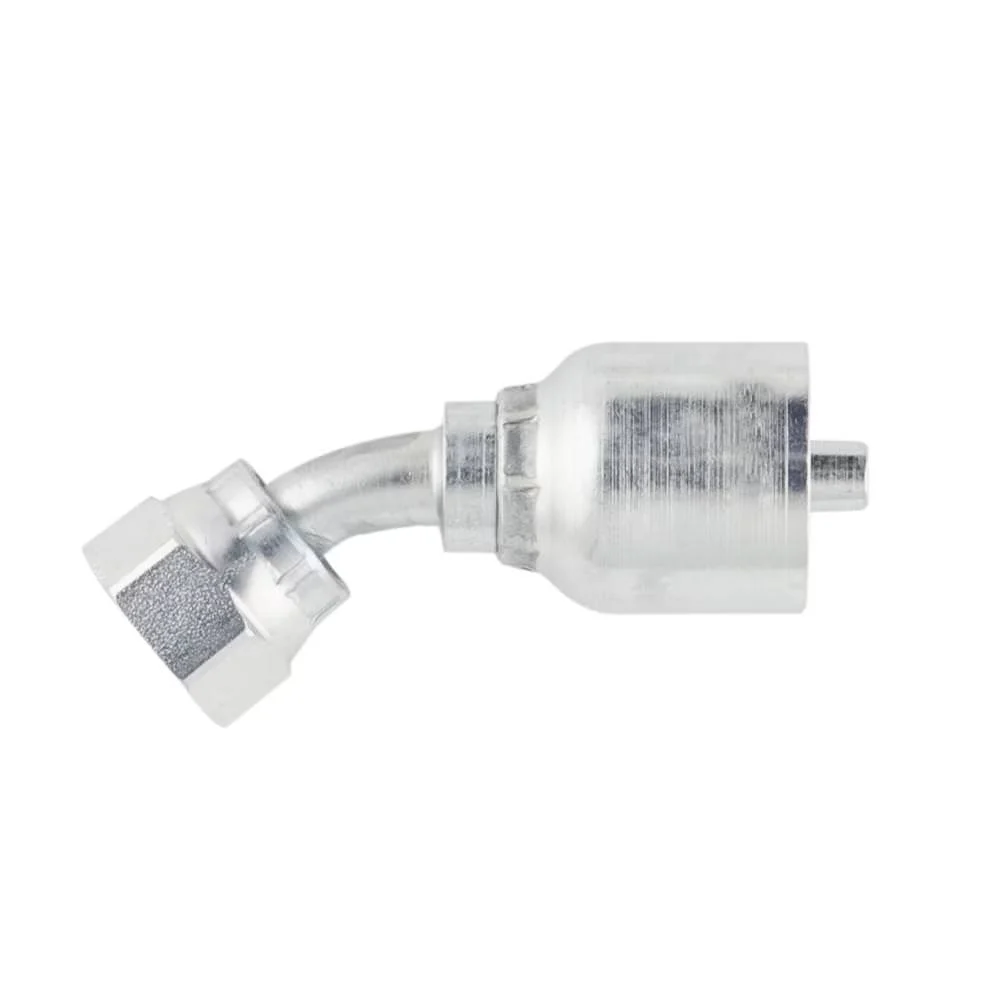

The Parker 43 Series 1J743-20-20 is a high-quality female Seal-Lok swivel fitting designed specifically for ergonomic and efficient hydraulic applications. This 45° elbow fitting is engineered to permit quick assembly with the family of Parkrimp crimpers, allowing for seamless integration and functionality in various hydraulic systems.
Thanks to its innovative No-Skive technology, the assembly of this fitting eliminates the need to remove the outer cover of the hose, thereby significantly reducing the risks of premature hose failure which can occur from improper skiving. The chromium-6 free plating enhances resistance against corrosion, ensuring longevity and reliability even in challenging environments.
Specifications
- Part Number: 1J743-20-20
- Series: 43 Series
- Connection Type: Female Seal-Lok
- Swivel Type: Yes
- Angle: 45° Elbow
- Material: Steel
- Weight: 1.677 lbs
Features and Benefits
- Quick and easy assembly with Parkrimp crimpers
- No-Skive technology for improved hose integrity
- Chromium-6 free plating for enhanced corrosion resistance
- Reliable performance in high-pressure applications
- Made in the USA under strict quality control standards
Applications
- Hydraulic power systems
- Construction equipment
- Agricultural machinery
- Industrial automation
- Mobile hydraulics
Quality and Certification
The Parker 43 Series fittings are manufactured in alignment with Parker’s exceptional quality standards and are subject to rigorous testing procedures. This ensures that each fitting not only meets but exceeds industry compliance standards, delivering dependable performance in demanding hydraulic applications.
For technical support and assistance, contact our product specialists at (800) 823-4937.
