Description
Technical Overview

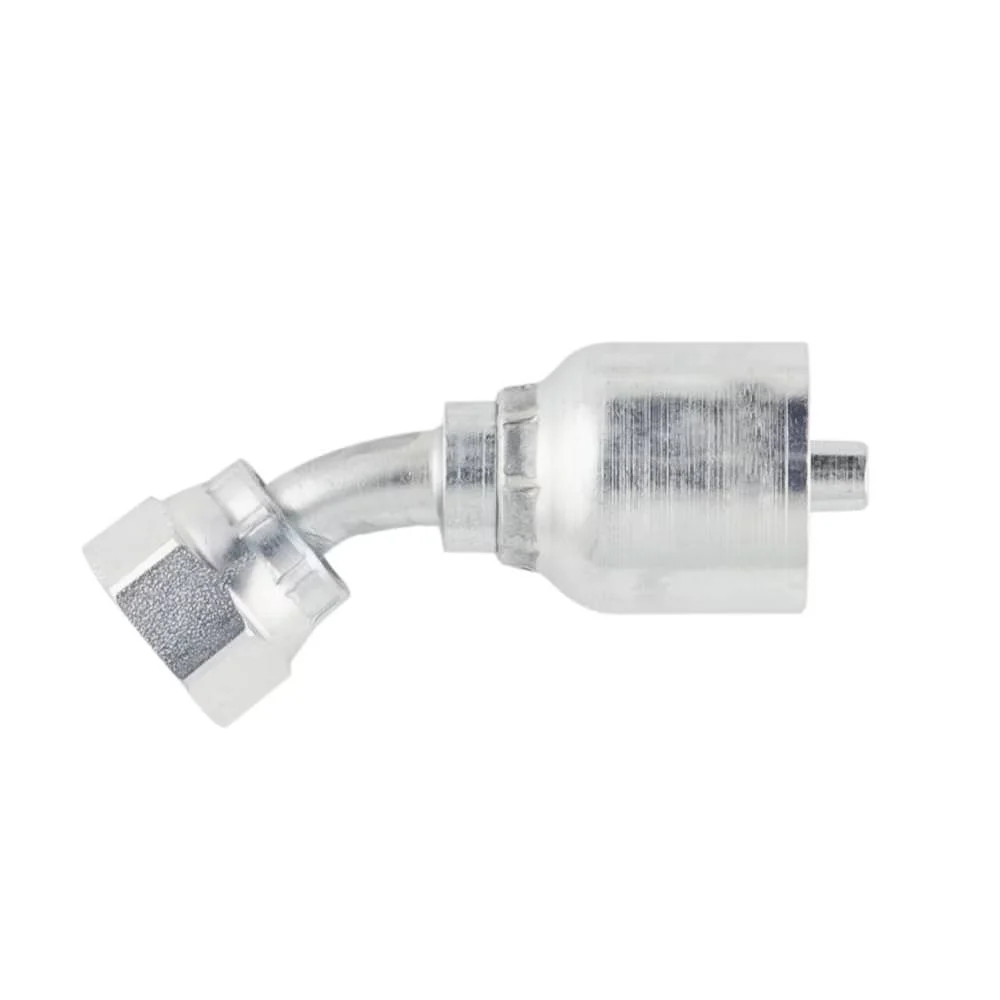

The Parker 43 Series is renowned for its versatility and durability in hydraulic applications. The 1J743-24-24 model is a female seal-lok swivel fitting configured as a 45° elbow, designed specifically for quick assembly using Parker’s Parkrimp crimping technology. This innovative design allows for the installation of No-Skive hose and fittings without the need to remove the outer cover of the hose, significantly reducing the risk of premature hose failure due to improper skiving.
Featuring Chromium-6 free plating, this fitting aligns with modern safety standards while providing excellent corrosion resistance. It is an optimal choice for use with Parker’s Hydraulic Braided, Light Spiral, Specialty, Suction, and Return hoses.
Specifications
- Part Number: 1J743-24-24
- Type: Female Seal-Lok Swivel 45° Elbow
- Weight: 2.966 lbs
- Material: Steel
- Plating: Chromium-6 free
Features and Benefits
- Quick and easy assembly with Parkrimp crimpers
- No need to skive hose, reducing the chance of hose failure
- Designed for high-performance hydraulic applications
- Chromium-6 free plating ensures compliance with safety standards
- Made in USA for superior quality and reliability
Applications
- Hydraulic systems in industrial environments
- Mobile equipment hydraulics
- Construction and agricultural machinery
- Fluid transfer systems
Quality and Certification
Parker products, including the 43 Series fittings, are manufactured following stringent quality standards. Each fitting is tested for reliable performance and durability, ensuring they meet or exceed industry regulations and specifications.
For technical support and assistance, contact our product specialists at (800) 823-4937
