Description
Technical Overview

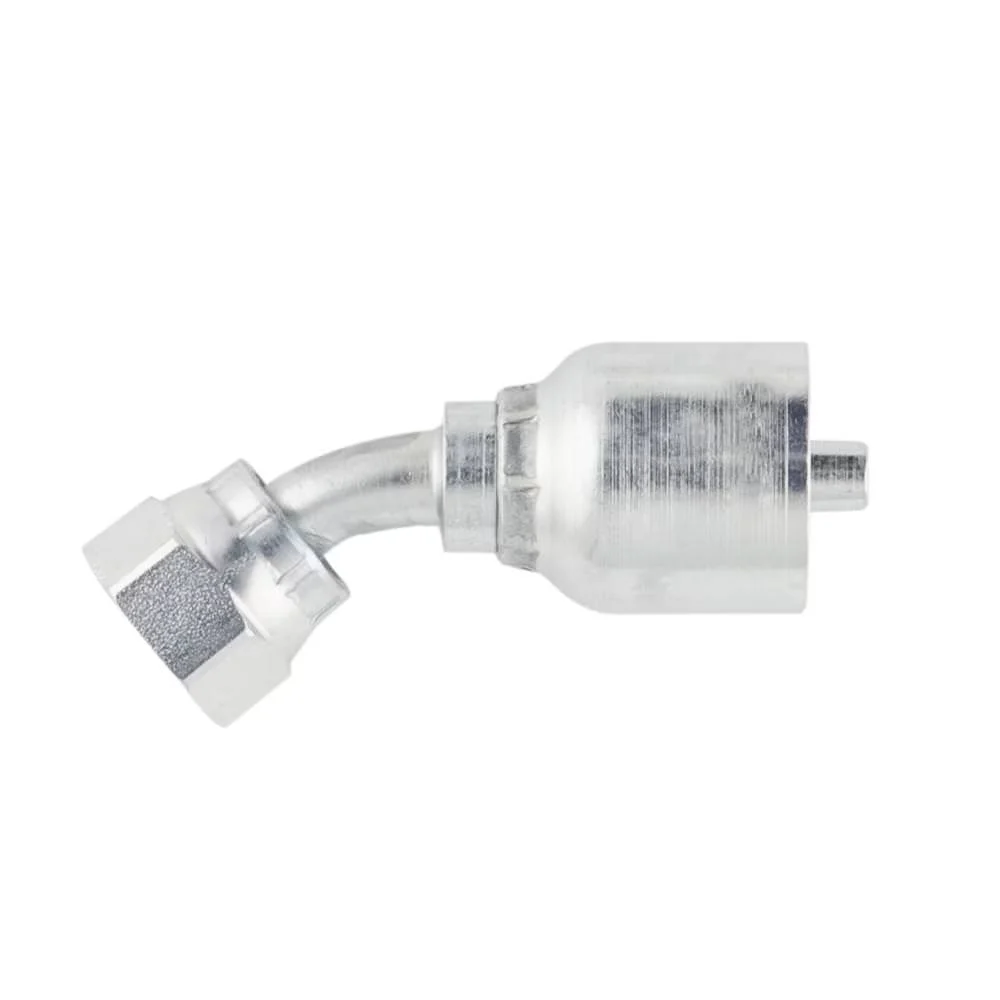

The Parker 43 Series Fittings offer a high-quality permanent (crimp) style designed to ensure a secure and reliable connection in hydraulic applications. The 1J743-6-6 female Seal-Lok swivel 45° elbow fitting is engineered for quick assembly with Parker’s family of Parkrimp crimpers, permitting efficient installation without the need for removing the outer cover of the hose. This innovative design helps to eliminate premature hose failure caused by incorrect skiving lengths.
Specifications
- Part Number: 1J743-6-6
- Material: Steel
- Fitting Style: Female Seal-Lok swivel elbow
- Angle: 45°
- Hose Compatible: No-Skive hose
- Plating: Chromium-6 free
- Weight: 0.21 lbs
Features and Benefits
- Quick assembly with Parkrimp crimpers for efficient installation
- Female Seal-Lok design ensures a leak-free connection
- 45° elbow configuration for optimal routing in tight spaces
- Chromium-6 free plating enhances corrosion resistance
- Ensures compatibility with a range of Parker hydraulic hoses
Applications
- Hydraulic systems in mobile and industrial equipment
- Agricultural machinery
- Automotive hydraulic applications
- Oil and gas industry
- Construction and mining equipment
Quality and Certification
The Parker 43 Series Fittings adhere to Parker’s strict quality standards and are manufactured under comprehensive testing procedures to ensure reliable performance in demanding applications. Their design features do not only conform to industry certifications, but emphasize durability and longevity for optimal workflow in various industries.
For technical support and assistance, contact our product specialists at (800) 823-4937.
