Description
Technical Overview

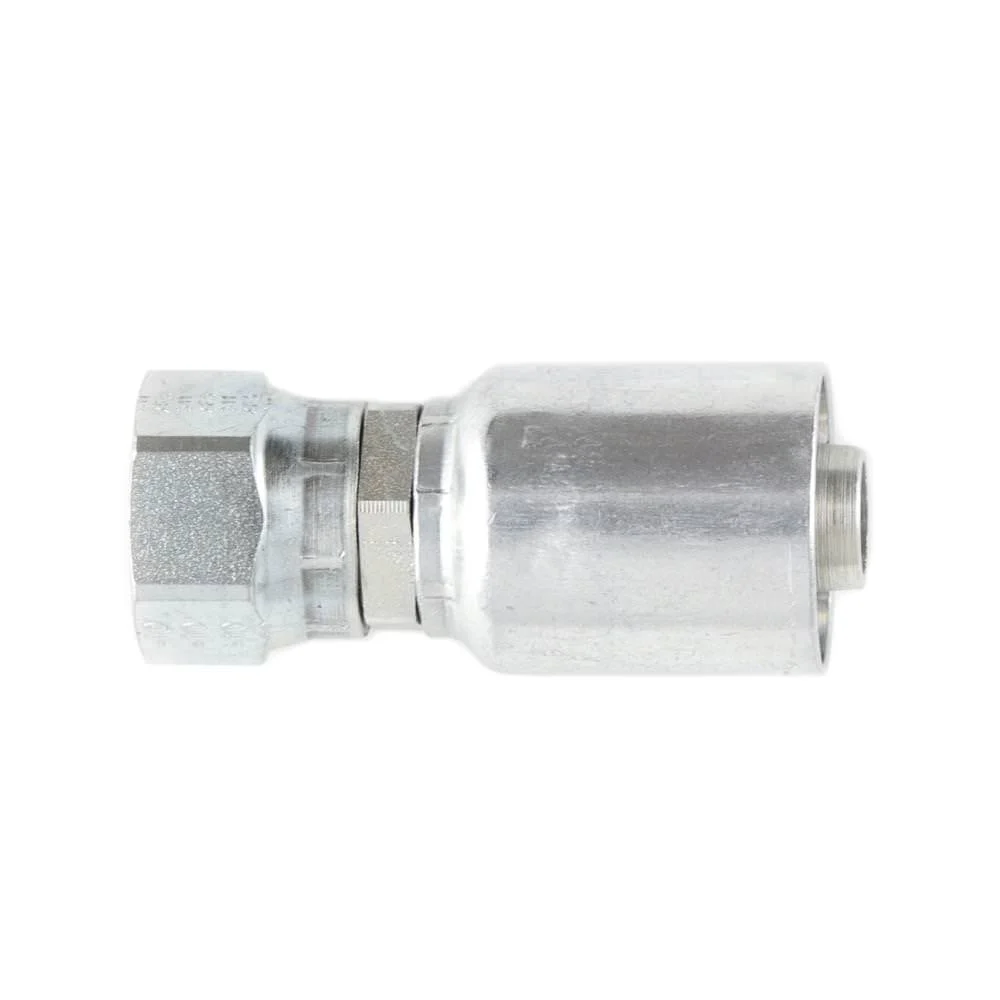

The Parker 43 Series Female Seal-Lok fitting (Part Number: 1JC43-12-10) is a high-quality, permanent (crimp) style fitting engineered for use with Parker’s No-Skive hose assemblies. This innovative design allows for quick and efficient assembly with Parker’s family of Parkrimp crimpers, ensuring a secure connection without the need to remove the outer cover of the hose. This unique feature minimizes the risk of premature hose failure that can occur from improper skiving.
Specifications
- Part Number: 1JC43-12-10
- Series: 43 Series
- Connection Type: Female Seal-Lok
- Design: Swivel, Straight, Short
- Material: Steel
- Weight: 0.55 lbs
- Plating: Chromium-6 Free
Features and Benefits
- Eliminates premature hose failure with No-Skive assembly technology
- Chromium-6 free plating for enhanced environmental safety
- Reliable swivel design ensures proper alignment during installation
- Compatible with a wide range of Parker hydraulic braided, light spiral, suction, and return hoses
- Engineered for high-performance applications in various industries
- Made in USA, adhering to strict manufacturing standards
Applications
- Hydraulic systems in industrial machinery
- Agricultural equipment
- Construction machinery
- Fluid transfer applications
- Marine hydraulic systems
Quality and Certification
This fitting is manufactured in accordance with Parker’s rigorous quality standards, meeting or exceeding industry certifications for hydraulic connections. The assembly process ensures that each fitting undergoes stringent testing to verify performance and reliability in high-pressure environments.
For technical support and assistance, contact our product specialists at (800) 823-4937
