Description
Technical Overview

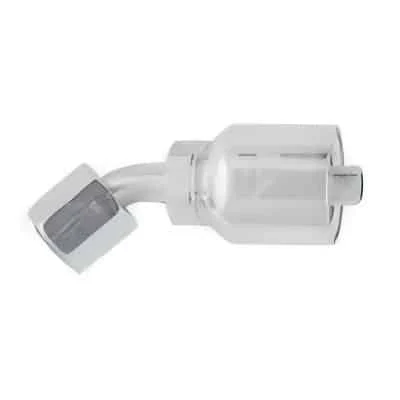

The Parker 43 Series 1L743-16-16 is a versatile and high-quality female JIC (Joint Industry Council) 37° swivel elbow fitting designed for use in various hydraulic applications. This crimp-style fitting allows for quick and efficient assembly with Parker’s family of Parkrimp crimpers, which simplifies the installation process. With its no-skive design, the need to remove the outer cover of the hose during assembly is eliminated, thus significantly reducing the risk of premature hose failure.
Constructed from robust steel and featuring Chromium-6 free plating, this fitting provides superior corrosion resistance and durability in demanding environments, making it a reliable choice for various hydraulic systems.
Specifications
- Part Number: 1L743-16-16
- Type: Female JIC 37° swivel elbow
- Material: Steel
- Pressure Rating: 6000 PSI
- Connection Type: JIC 37°
- Drop Style: Medium drop
- Weight: 1.09 lbs
Features and Benefits
- Quick assembly with Parkrimp crimpers
- No-skive design prevents premature hose failure
- Chromium-6 free plating for enhanced corrosion resistance
- Designed to work with Parker Hydraulic Braided, Light Spiral, Specialty, Suction, and Return hoses
- Made in the USA under strict quality control standards
Applications
- Hydraulic systems in construction equipment
- Agricultural machinery hydraulic connections
- Industrial hydraulic applications
- Transfer of hydraulic fluids in automotive systems
- Compatible with various hose types including braided and spiral hoses
Quality and Certification
The Parker 43 Series fittings adhere to Parker’s rigorous quality standards and comply with industry certifications, ensuring each fitting meets performance and safety requirements. Regular testing is performed to guarantee durability and reliability under various operating conditions.
For technical support and assistance, contact our product specialists at (800) 823-4937.
