Description
Technical Overview

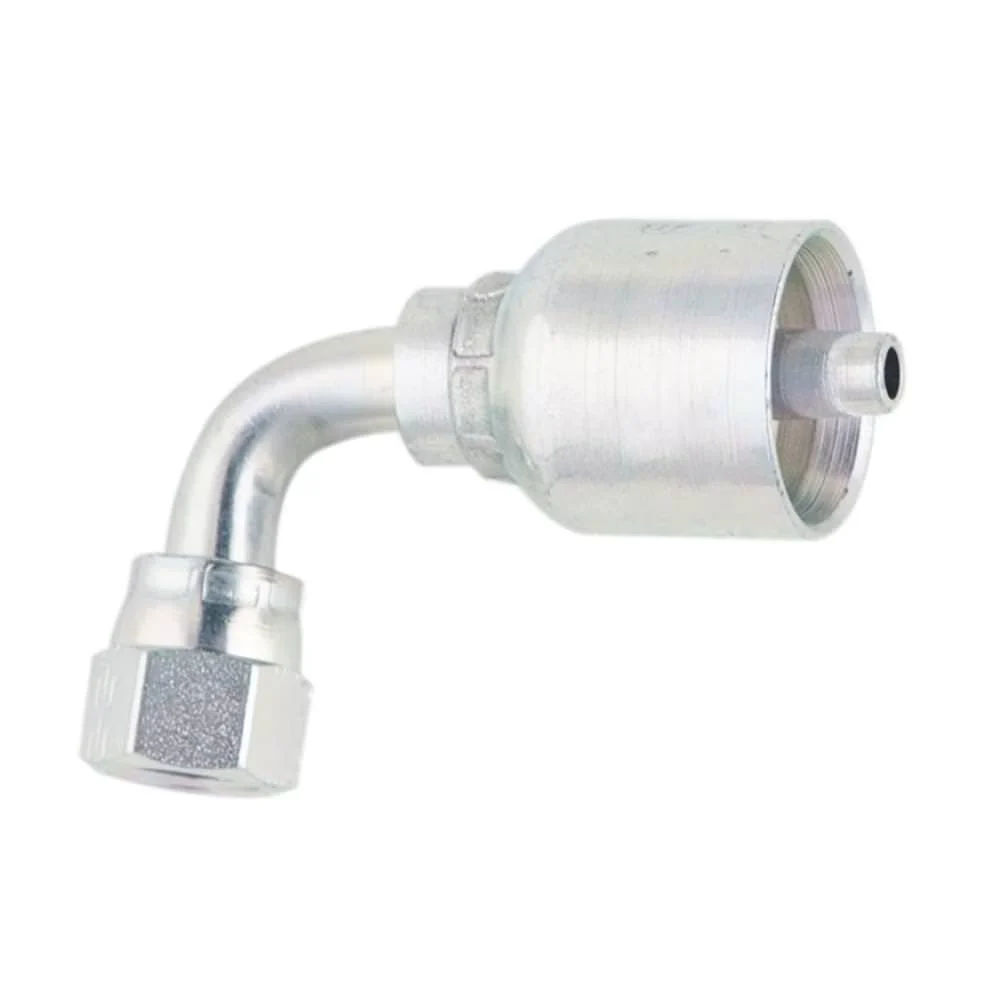

The Parker 13943-5-4 is a robust and reliable fitting from the 43 Series, thoughtfully engineered for hydraulic applications. This fitting features a female JIC 37° swivel design, allowing for easy alignment and secure connection, even in tight spaces. The 90° elbow configuration promotes efficient routing of hoses, making it particularly beneficial for applications with limited space.
Constructed from durable steel, the Parker 13943-5-4 is built to withstand the rigors of demanding environments, guaranteeing long-lasting performance. This fitting’s compatibility with the Parkrimp crimping system allows for quick assembly using No-Skive hose and fittings, eliminating the need to remove the outer cover of the hose. This design minimizes the risk of premature hose failure caused by improper skiving, thereby enhancing overall reliability.
Specifications
- Part Number: 13943-5-4
- Series: 43 Series
- Connection Type: Female JIC 37°
- Design Type: Swivel Elbow
- Elbow Angle: 90°
- Size: 5/16 inch
- Material: Steel
- Plating: Chromium-6 free
- Weight: 0.14 lbs
Features and Benefits
- Quick assembly with Parkrimp crimpers enhances operational efficiency
- Reduces premature hose failures by eliminating skiving errors
- Durable steel construction ensures exceptional reliability and longevity
- Chromium-6 free plating enhances corrosion resistance
- Made in USA under rigorous quality standards, ensuring superior quality
Applications
- Used in hydraulic systems where reliable connections are critical
- Applicable for automotive applications focused on efficient fluid transfer
- Ideal for general industrial machinery with hydraulic components
- Suitable for agricultural equipment needing robust hydraulic fittings
Quality and Certification
Manufactured in accordance with Parker’s stringent quality standards, the 13943-5-4 fitting complies with rigorous industry testing and certifications. This not only ensures reliability but also instills confidence in its durable performance across various hydraulic applications.
For technical support and assistance, contact our product specialists at (800) 823-4937
