Technical Overview

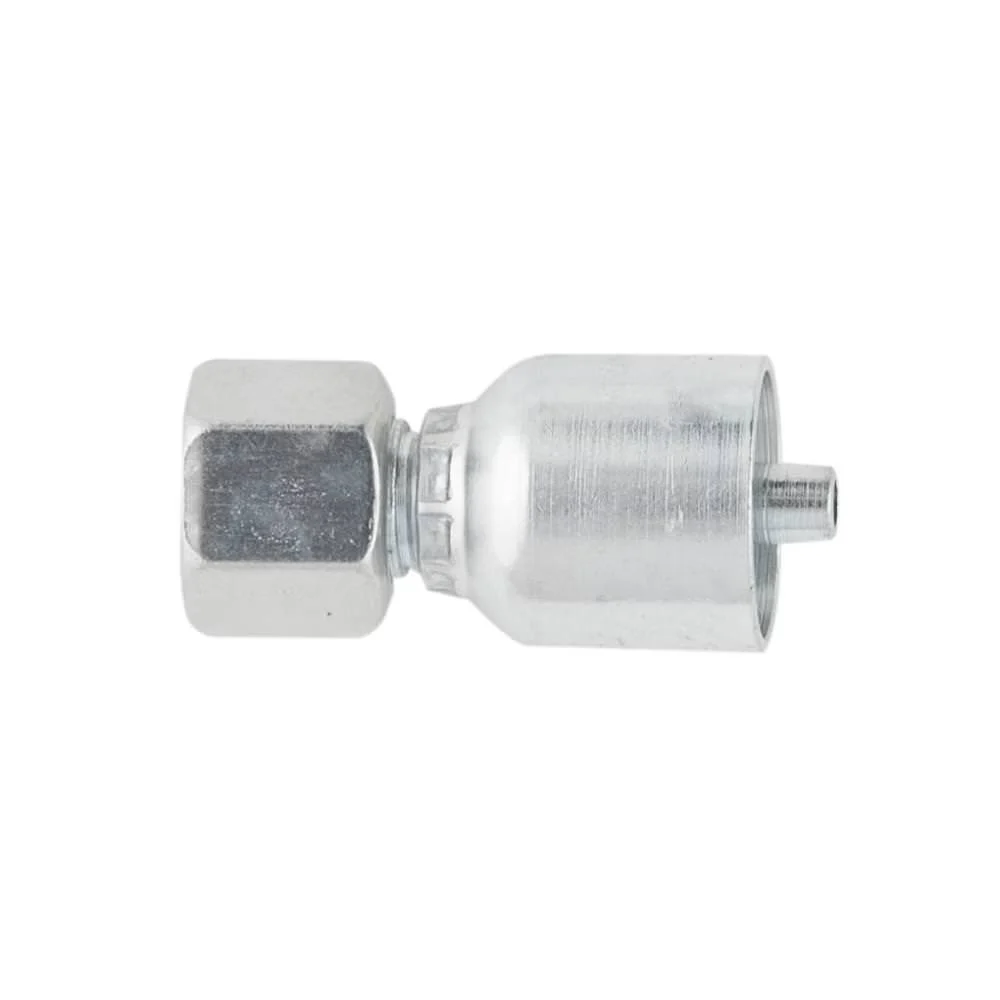

The Parker 1CA43-18-12 is a high-quality female metric L swivel fitting from the renowned Parker 43 Series. Designed as a permanent (crimp) style fitting, it allows for quick assembly when used with our family of Parkrimp crimpers. The unique no-skive assembly process eliminates the need to remove the outer cover of the hose, effectively preventing premature hose failure due to improper skiving.
This fitting features a 24° cone with an integrated O-ring for a secure seal, ensuring optimal performance in hydraulic applications. Constructed with Chromium-6 free plating, the 1CA43-18-12 is an environmentally friendly option that does not compromise on quality or durability.
Specifications
- Part Number: 1CA43-18-12
- Material: Steel with Chromium-6 free plating
- Type: Female Metric L Swivel
- Connection Angle: 24° Cone with O-Ring
- Weight: 0.477 lbs
- Applications: Suitable for use with Parker Hydraulic Braided, Light Spiral, Specialty, Suction, and Return Hoses
Features and Benefits
- Quick and easy assembly with Parkrimp crimpers
- No-skive installation prevents hose damage
- Chromium-6 free plating for enhanced environmental safety
- Durable steel construction for long service life
- Versatile compatibility with various hose types
Applications
- Hydraulic systems in industrial settings
- Construction and agricultural machinery
- Material handling equipment
- General fluid power applications
Quality and Certification
Parker’s 1CA43-18-12 fitting adheres to stringent manufacturing standards and quality protocols. It meets industry specifications for reliability and performance in hydraulic systems. Each fitting undergoes rigorous testing to ensure it meets Parker’s quality benchmarks.
For technical support and assistance regarding this product, please contact our product specialists at (800) 823-4937.
